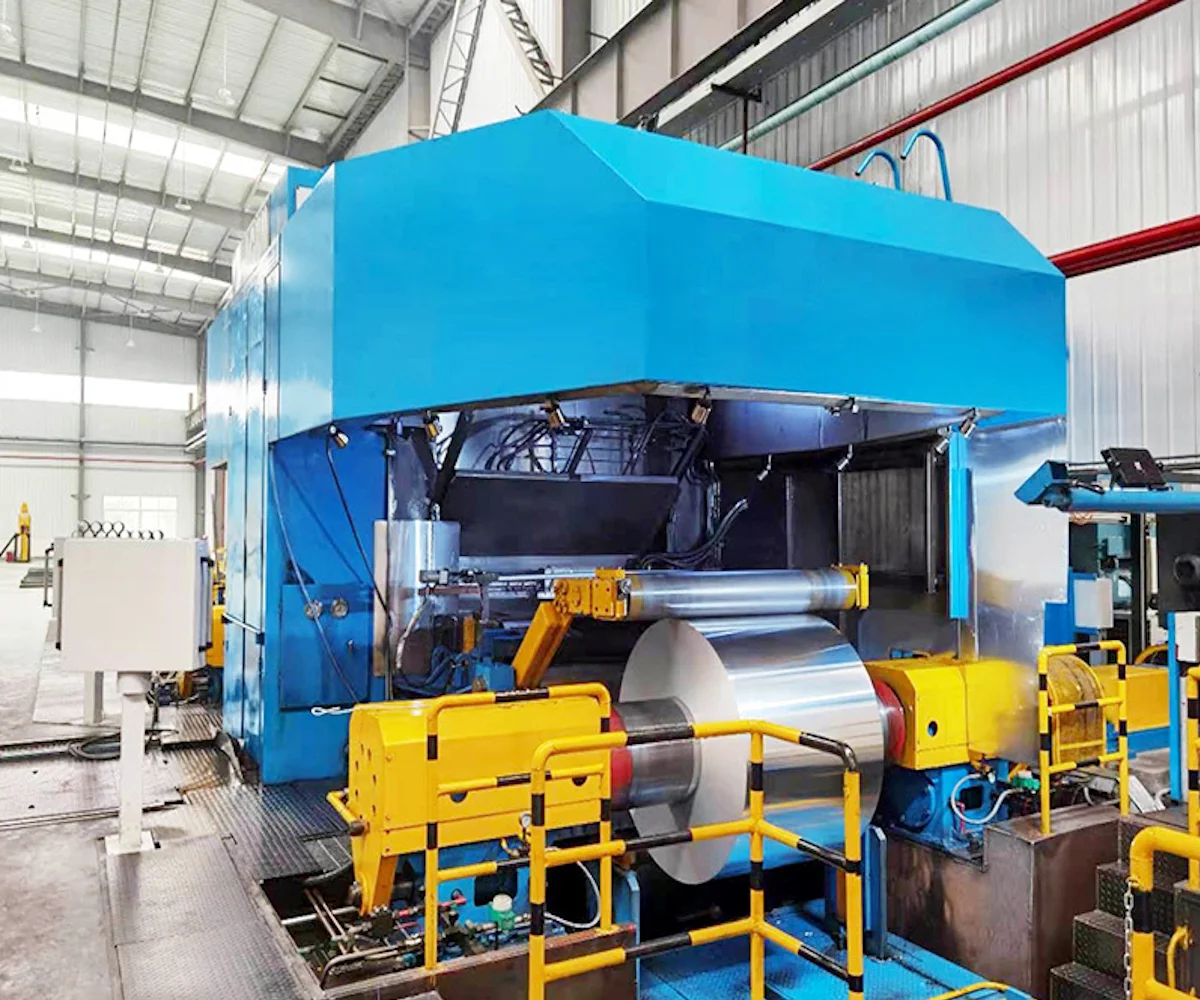

Aluminium Foil Rolling Mill
By: Zhengzhou Hengzhong Heavy Machinery Manufacturing Co., Ltd.
Details
Price:Available on request
Description
The aluminium foil rolling mill can process a maximum of 0.6 mm of material into foil material with all kinds of gauges and widths. These processed foil can be offered as further processing raw material, such as producing container, embossing, printing and coating, sticking, packaging for food, drinks and medicine in daily life, cosmetics and packages for some special-use material, cables, heat exchangers etc.
The aluminium foil rolling mill adjusts the roll gap and work roll with hydraulic pressure. It is equipped with a strong and good rolling oil system, which can control the roll type freely. With the automatic control and display system of thickness and plate shape, the mill can produce aluminium foil with strict thickness tolerance and good plate shape. It can adjust and maintain tension sensitively.
Product Application:
The main applications include flexible packaging, cigarette foil, golden card foil, pharmaceutical foil, household foil, container foil, air conditioner foil, lid foil, beer mark foil etc.
Model Type:
- Φ180/Φ400×800
- Φ260/Φ700×1450
- Φ280/Φ700×1650
- Φ280/Φ850×1850
- Φ280/Φ1000×2000
Parameter:
|
Aluminium Alloy |
1000, 3000, 8000 Series |
|
Entry Thickness |
Max 0.6 mm |
|
Entry Width |
600--1850 mm |
|
Dia. of Work Roll |
Φ140--280 mm |
|
Width of Work Roll |
800—2000 mm |
|
Dia. of Work Roll |
Φ440—850 mm |
|
Width of Work Roll |
750—2250 mm |
|
Exit Width |
950--2250 mm |
|
O.D. of coil |
Max. Φ2500 mm |
|
Weight of Coil |
Max 20000 Kg |
|
Rolling Speed |
Max 1500 m/min |
|
Exit Thickness |
0.4--0.018 mm |
|
Finishing Thickness |
0.1--0.007×2 mm |
|
Rolling Mode |
Non-reversing |
|
Electric Control System |
SIEMENS ABB |
