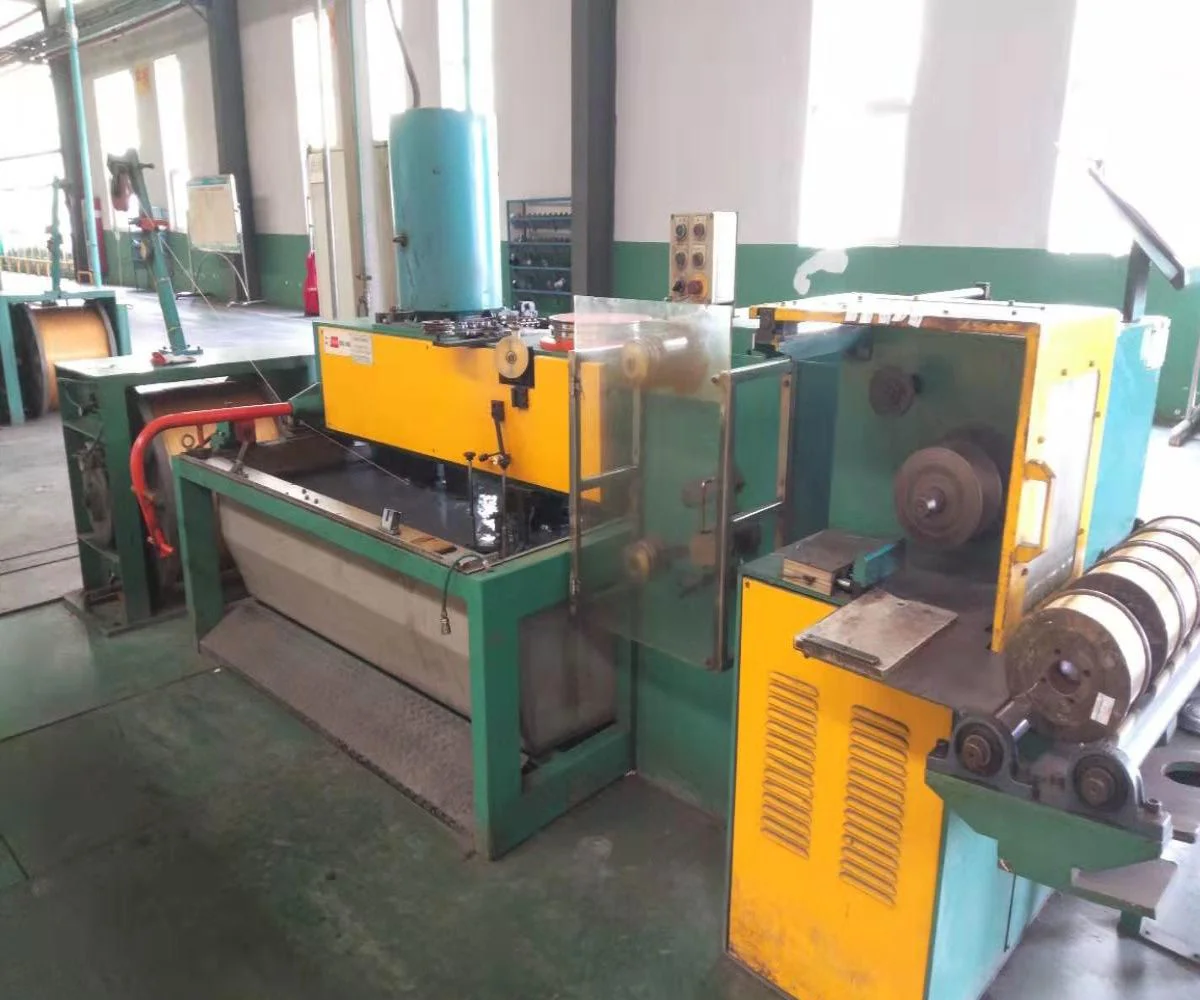

Turn Over Wet Drawing Machine
CategoryAluminium Auxiliary EquipmentManufacturerYFmetalwiredrawingmachineMin Order Quantity1.00 UnitDelivery Lead TimeAs per orderPlace of OriginChinaSupply AbilityCustomization as requiredPackaging DetailsStandard export packingTransportation DetailsRoad / Ship
*Login Required
Details
Price:Available on request|Inlet wire dia & Oslash:1.8 mm -3.0 mm|Oulet wire dia & Oslash:0.15 mm-0.45 mm|Speed:1080m /min
Description
Features:
- Automatic correction control system ,capstan hardness & HRC60
- Drawing speed: 20m/s at maximum operating speed, configure motor power
- And Drawing pass number according to different drawing material
Application :
Owing to the structure restriction of this wire drawing machine, it is more suitable for drawing wires of smaller diameters. Wet wire drawing machine is available for drawing mild steel, carbon steel, stainless steel, copper and aluminium alloys.
|
Sl No
|
Detail Content | Technical Data |
| 1 | Max Dies Quantity | 17~21~23 Dies |
| 2 | Main motor power | 30~37~55 KW |
| 3 | Take-up motor power | 4~5.5 KW |
| 4 | Take-up method | SG200~SG255~SG300 |
| 8 | Max speed | Max. 1200m/min |
| 9 | Lubrication type | Intrusive |
| 10 | Dimensions(L*W*H) | 1950 mm & times 1500 mm & times 1650 mm |
| 11 | Weight | 2.6~2.7 T |
