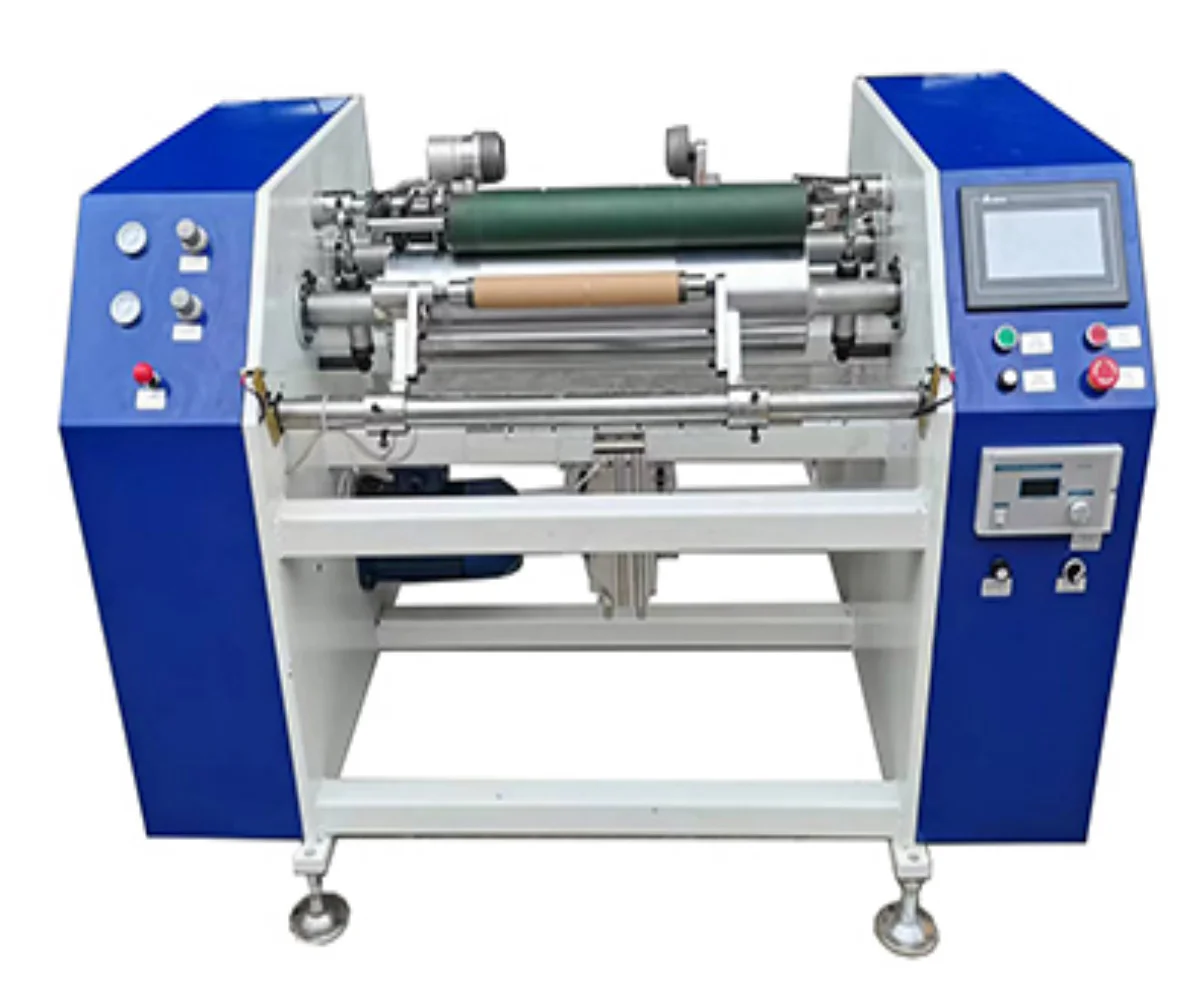

Aluminium Foil And Cling Film Rewinder
By: Wenzhou Jieze Packaging Machinery Co. Ltd.
CategoryFinishing LineManufacturerWenzhou Jieze Packaging Machinery Co. Ltd.Min Order Quantity1.00 UnitDelivery Lead TimeAs per order Place of OriginChina Supply AbilityCustomization on RequirementPackaging Details Standard Export PackingTransportation Details Road/Ship
*Login Required
Details
Price:Available on request
Description
Electronic part for the machine :
|
Motor |
Siemens, Baide |
|
Inverter |
Delta, Taiwan |
|
PLC |
Omron, Japan |
|
Meter counter |
Omron, Japan |
|
Relay |
Schneider, Japan |
|
Touch screen |
Delta, Taiwan |
Parameter :
|
Model |
JZ-500L-I |
|
Material |
Aluminum foil , cling film |
|
Width of material |
100-500mm |
|
Max. Diameter of Jumbo roll |
800mm |
|
Max. Diameter of rewinded roll |
260mm |
|
Rewind length |
2.5-3000m/roll |
|
Thickness of material |
0.008-0.05mm |
|
Rewinding speed |
0-600m/min |
|
Unwinding diameter |
3 inch |
|
Rewind clamp holder |
According to paper core size(one set free charge) |
|
Power of main motor |
1.5Kw |
|
Installation dimension |
1520 x 1250 x 1200mm |
|
Weight |
700kg |
