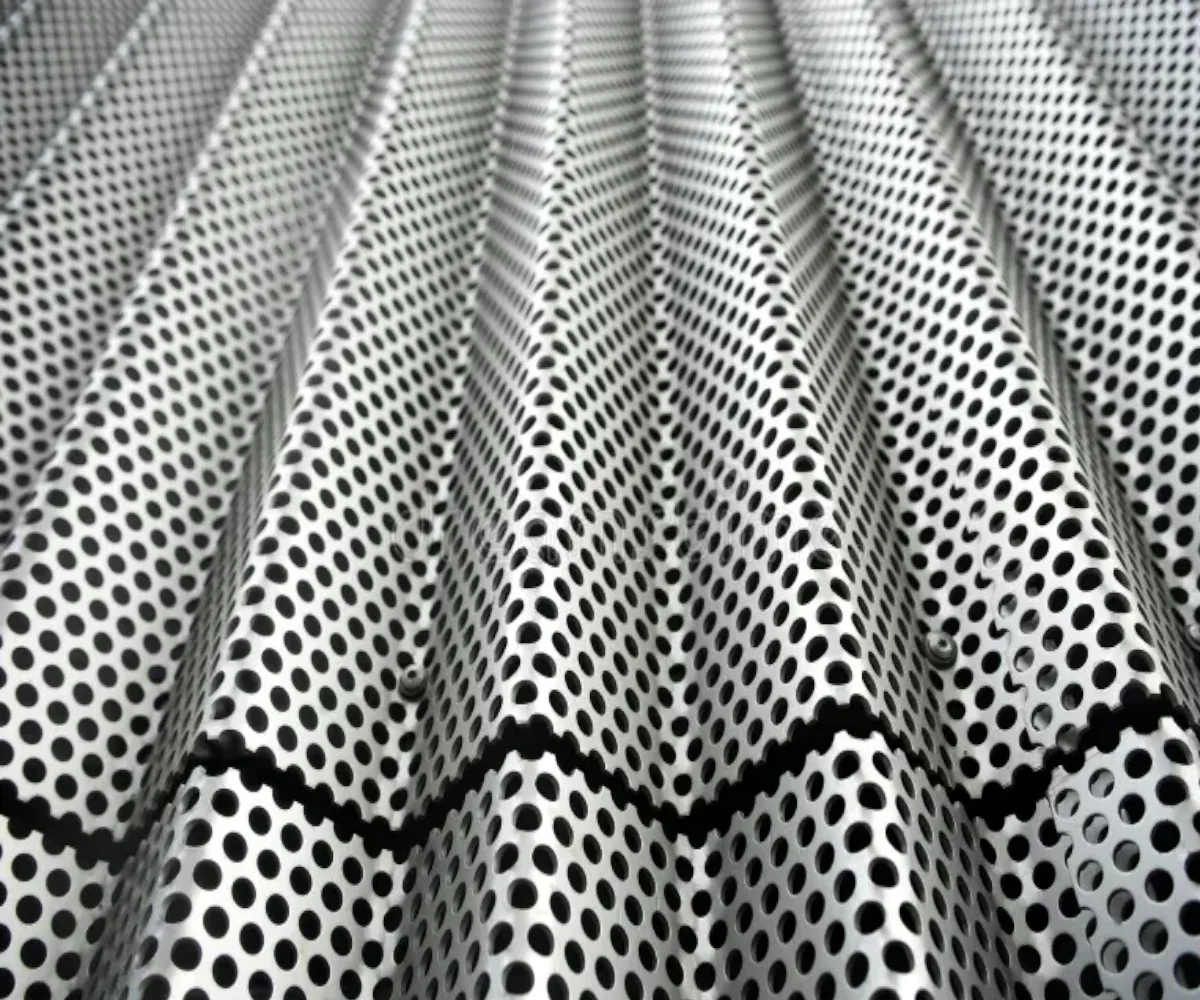

Aluminum Corrugated Composite Panel
By: Viva Composite Panel Pvt. Ltd.
CategoryACP and Cladding ProductsManufacturerViva Composite Panel Pvt. Ltd.Min Order Quantity50.00 TonsDelivery Lead TimeAs per order Place of OriginIndia Supply AbilityCustomization as requiredPackaging DetailsStandard export packingTransportation DetailsRoad / Ship
*Login Required
Details
Price:Available on requeest
Description
Properties :
|
Property |
Test Method |
Units |
Aluminium Corrugated Core (Class A2+) |
|
ACCP Thickness |
Measurement |
mm |
4 |
|
Coil Thickness |
Measurement |
mm |
0.5 |
|
ACCP Weight |
Measurement |
Kg/m2 |
3.8 |
|
Core Density |
Measurement |
– |
2.74 |
|
Peel Test |
ASTM D 903 |
N/mm |
Min. 10 |
|
ACCP Tensile Strength |
ASTM D 638 |
Mpa |
55 |
|
ACCP Elongation |
ASTM D 638 |
% |
Min. 6 |
|
ACCP Yield Strength |
ASTM D 638 |
MPa |
47 |
|
Thermal Expansion |
ASTM D 696 |
mm/M/100° |
2.4 |
|
Heat Transmission Coefficient (U) |
ASTM C 1363 |
W/m²K |
5.53 |
|
Fire Classification |
EN 13501-1 |
– |
Class A2-s1-d0 |
|
Fire Rating |
DIN 4102 |
– |
Class A2 |
|
Sound Transmission Loss |
ASTM E 90 |
dB |
25 |
|
Sound Absorption Factor |
ISO 354 |
– |
0.05 |
