Anodized Aluminium Panel
By: Taizhou Naze New Material Co., Ltd
CategoryBuilding and Construction ExtrusionManufacturerTaizhou Naze New Material Co., Ltd.Min Order Quantity10.00 MTDelivery Lead TimeAs per orderPlace of OriginChinaSupply AbilityCustomization as requiredPackaging DetailsStandard export packingTransportation DetailsRoad / Ship
*Login Required
Details
Price:Available on request
Description

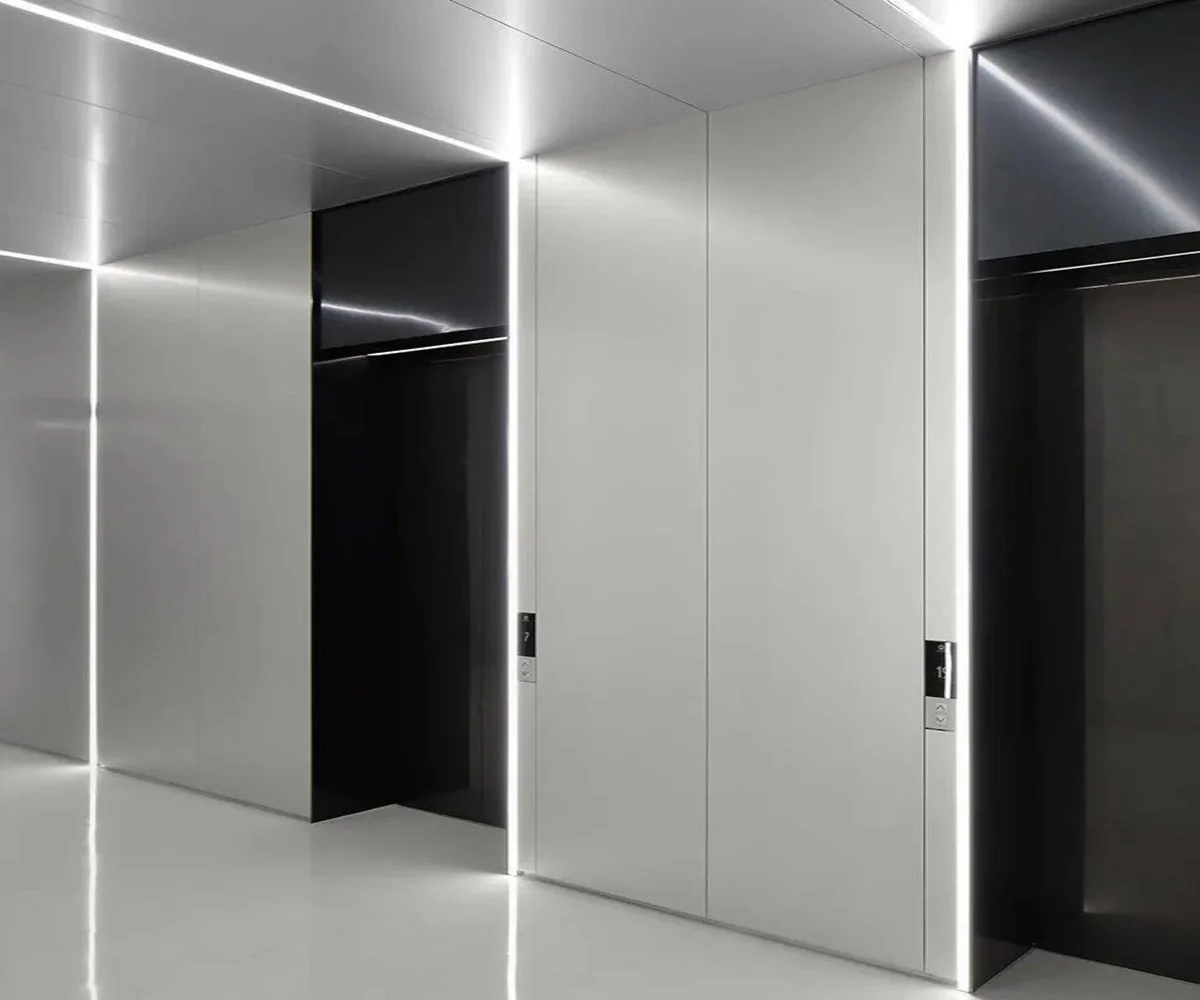

Anodized Aluminium Panel is an aluminum material with a certain thickness of oxide layer on the surface after special treatment. This process can prepare aluminum plate material with a uniform surface, wear resistance, corrosion resistance, and beautiful appearance, which is widely used in the fields of construction, electronics, automobiles, etc.
Technical Data:
|
|
Standards | Anodized |
| Alloy | EN 573-3 | A5005 |
| Temper | EN 515 | H24 |
| Standard Thickness | EN 485-4 | 1mm-3mm |
| Standard Widths | EN 485-4 | 600mm, 1000mm, 1250mm, 1500mm |
| Standard Length | EN 485-4 | ≤ 4000mm |
| Panel Weight | 1mm = 2.7Kg/m2 | |
| 2mm = 5.4Kg/m2 | ||
| 3mm = 8.1Kg/m2 | ||
| Tensile Strength | EN 1396 | 140 – 230MPa |
| Coating Thickness | EN 13523-1 | 15 - 25 µm |
| Fire Classification | EN 13501-1 | A1 |
