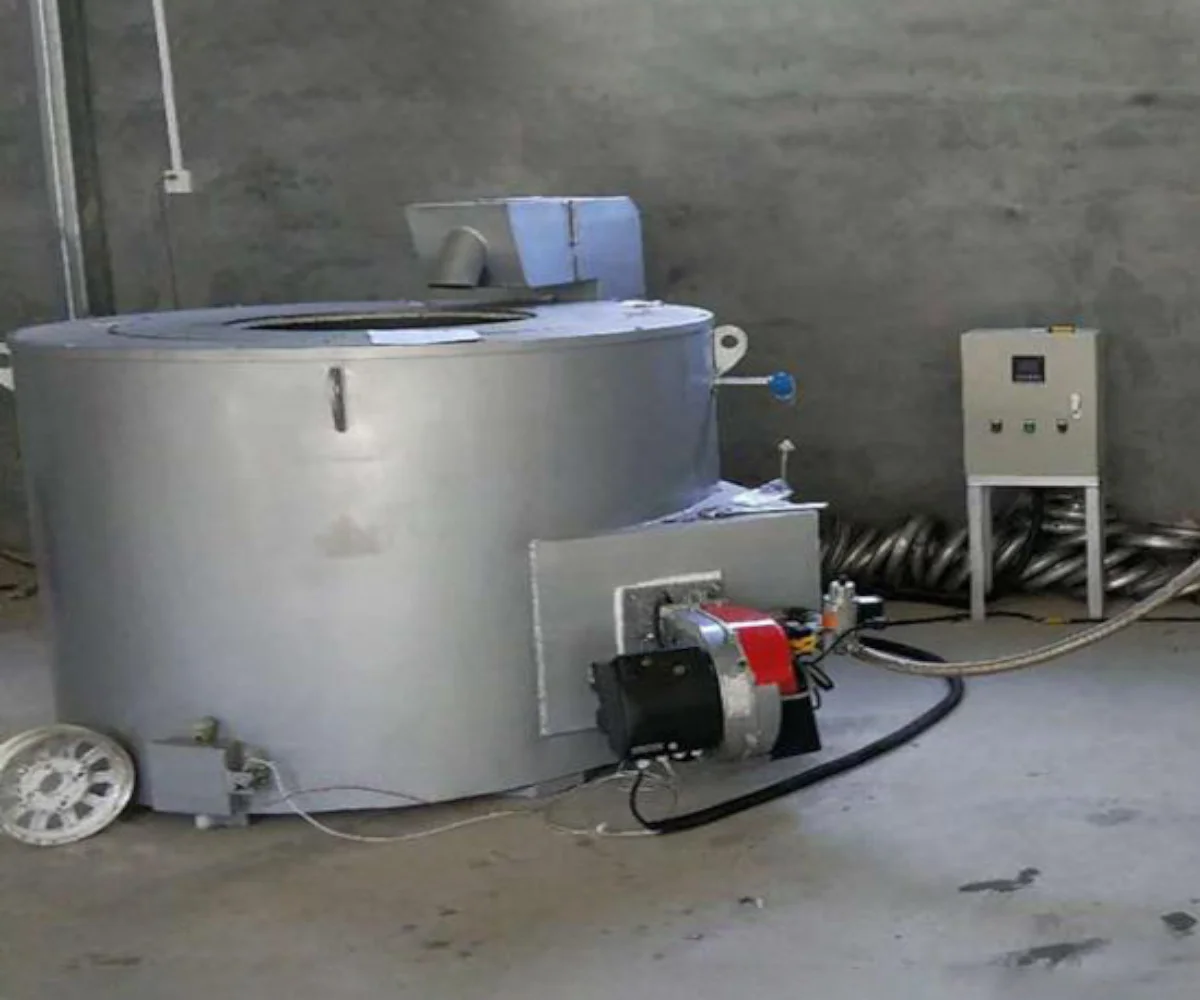

100 Kg Gas Oil Fired Aluminium Brass Crucible Melting Furnace
By: Shandong Yantong Energy Saving Equipment Co.,Ltd.
CategoryMelting FurnaceManufacturerShandong Yantong Energy Saving Equipment Co., Ltd.Min Order Quantity1.00 UnitDelivery Lead TimeAs per orderPlace of OriginChinaSupply AbilityCustomization as requiredPackaging DetailsStandard export packingTransportation DetailsRoad / Ship
*Login Required
Details
Price:Available on request
Description
Application:
- Aluminium melting
- Brass Copper melting
- Lead Zinc Melting
Fuel:
- Natural gas
- LPG Gas
- Oil and so on
Features:
- Model: GF-100KG, 200KG, 350KG, 500KG, 1000KG
- Natural gas/oil fired type aluminum melting furnace
- Max Heating Temperature: Aluminum 950 C; Copper 1350 C
- 24 Hour continuous work and easy to operate and more stable
- Design different type capacity melting furnace
| Technical Parameters | ||||||
|
Model
|
YTGF-100 | YTGF-200 | YTGF-350 | YTGF-500 | YTGF-1000 | YTGF-1500 |
| Melt capacity | 100kg | 200 kg | 350 kg | 500 kg | 1000kg | 1500kg |
| Input Voltage | 220V or 3 x 380V, 50/60HZ | |||||
| Burner (1000Kcal/H) | 10 | 15 | 30 | 60 | 100 | 150 |
| Aluminium loss rate % | Less than 3% | |||||
| Heating Temperature | Aluminum 950 C - Copper 1350 C | |||||
| Natural Gas cost | 80 m³ gas per ton Aluminum melting | |||||
| Melting Time | 1.5 ~ 2 hours | |||||
| Crucible | SIC Crucible | |||||
For more detailed information including pricing, customisation and shipping.
