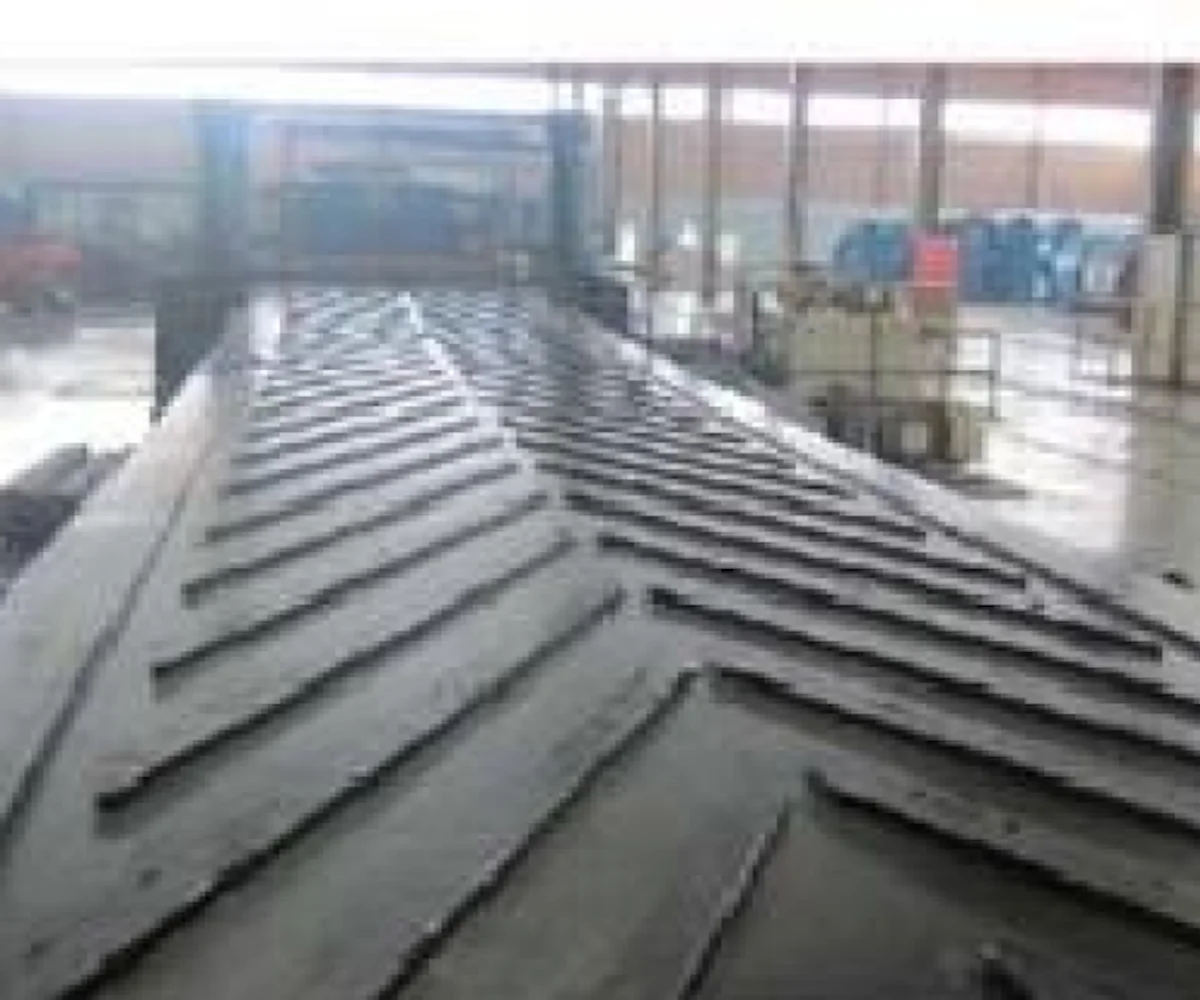

Patterned Conveyor Belt

Generally, the standard trough conveyor belt with smooth rubber cover is equipped with 3 rollers with a 35° groove angle. The maximum inclination of the material transport route is about 22°. When a reliable conveyor belt is needed for transportation at a larger inclination angle, sometimes exceeding 30° or even 40°, a conveyor belt with a patterned rubber cover is the best choice, which can effectively prevent the material from sliding down during transportation. The patterned conveyor belts produced by them have the following characteristics: the patterned convex blocks are molded and vulcanized at the same time as the rubber cover on the belt body, With various belt widths, a variety of patterns and convex block height combinations are provided to meet most application requirements, the pattern will change the lateral stiffness of the conveyor belt and the grooving performance of the conveyor belt can meet the high grooving requirements of the three, four or five rollers with large groove angles used on large-angle conveyors.
