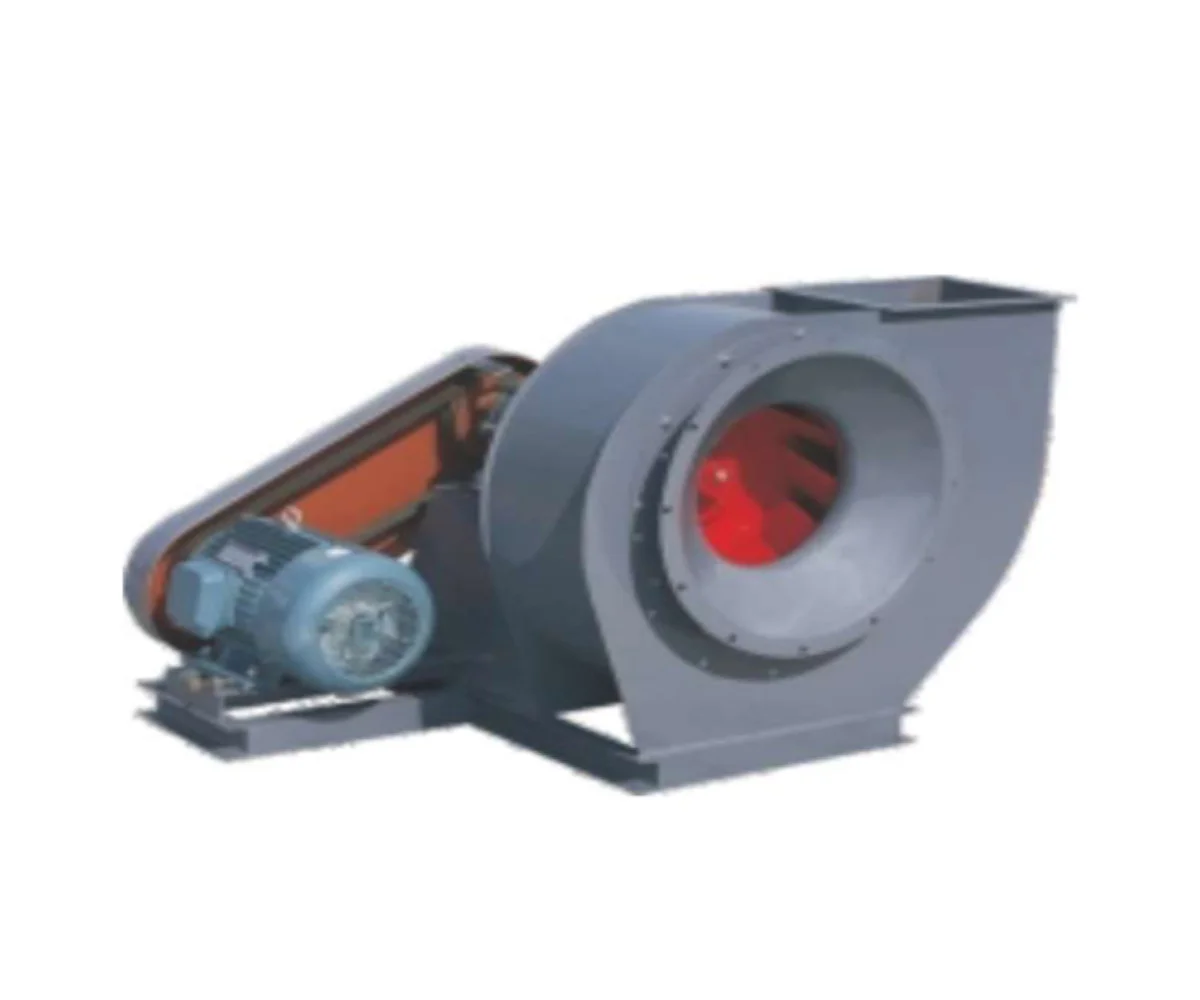

Y5-47 Boiler Centrifugal Fan

Type Y5-47 boiler centrifugal fan is designed for 0.2~20t / h industrial/domestic boilers fired with coal and equipped with a smoke and dust removal device. It has three types of Transmission structures: TYPE A, C, and D . The dust content of the conveying gas should be ≤ L50mg /m³. And the temperature of the imported flue gas should be>165 ℃ and < 250 ℃. If > 250 ℃, a stainless steel high-temperature boiler fan is the better choice. By the way, Y5-47 is equipped with a Type A Reloadable Motor. The type of general ventilation motors are made according to an E - class standard and the type of temperature motor is made of high-temperature-resistant materials. For heat dissipation, a cooling wind wheel is added to the lengthened shaft between the impeller and the motor housing, which can effectively block the heat transmitted by the impeller, The structure of Y5-47 is simple for maintenance.
