Aluminium Wire Rod T4 for Electrical Applications

Aluminium wire rod is manufactured in Switzerland for electrical applications, with supply available in 1xxx series alloys and 6061 alloy. The product range includes aluminium wire rods in 9.5 mm and 12 mm diameters, designed for use by cable producers.



Specifications:

1. Applications: Electrical applications and cable production
2. Available Alloys: 1080, 1350, 1370, 6101
3. Diameter: 9.5 mm and 12 mm



Chemical Composition (Maximum Limits):

1. 1080: Aluminium content min. 99.8%
2. 1370: Aluminium content min. 99.7%
3. 1350: Aluminium content min. 99.5%
4. 6101: Aluminium content remaining



Wire Rod Technical Specifications:

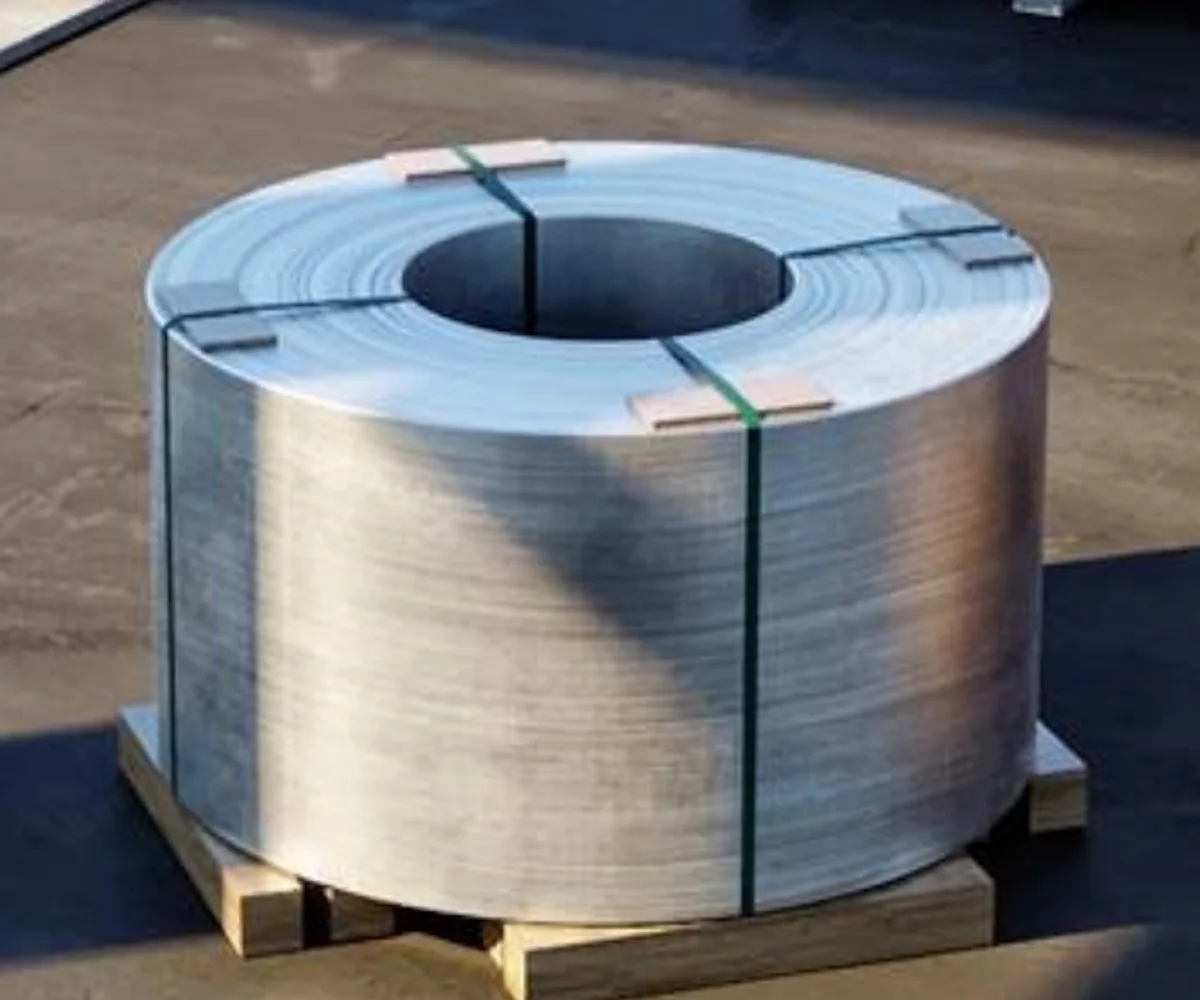

1. Coil Weight: 1700-2000 kg (1080, 1350/1370 grades); 2000 ± 200 kg (6101 T4)
2. Coil Height: 850 mm (up to 950 mm for 6101 T4)
3. Internal Diameter: 500-550 mm
4. External Diameter: 1420-1500 mm
5. Tensile Strength: 80-130 MPa depending on alloy and temper
6. Elongation: Minimum 10-15%
7. Electrical Conductivity: Up to 62.2% IACS



Features:

• Available in multiple aluminium grades for electrical applications
• Supplied in coil form for cable manufacturing requirements
• Offers different conductivity and mechanical property ranges based on alloy selection
• Available in 9.5 mm and 12 mm wire rod diameters



About the Supplier:

The manufacturer is based in Switzerland and supplies aluminium wire rod products in different alloys for electrical and cable industry requirements. Buyers can explore the supplier profile and contact them directly.
