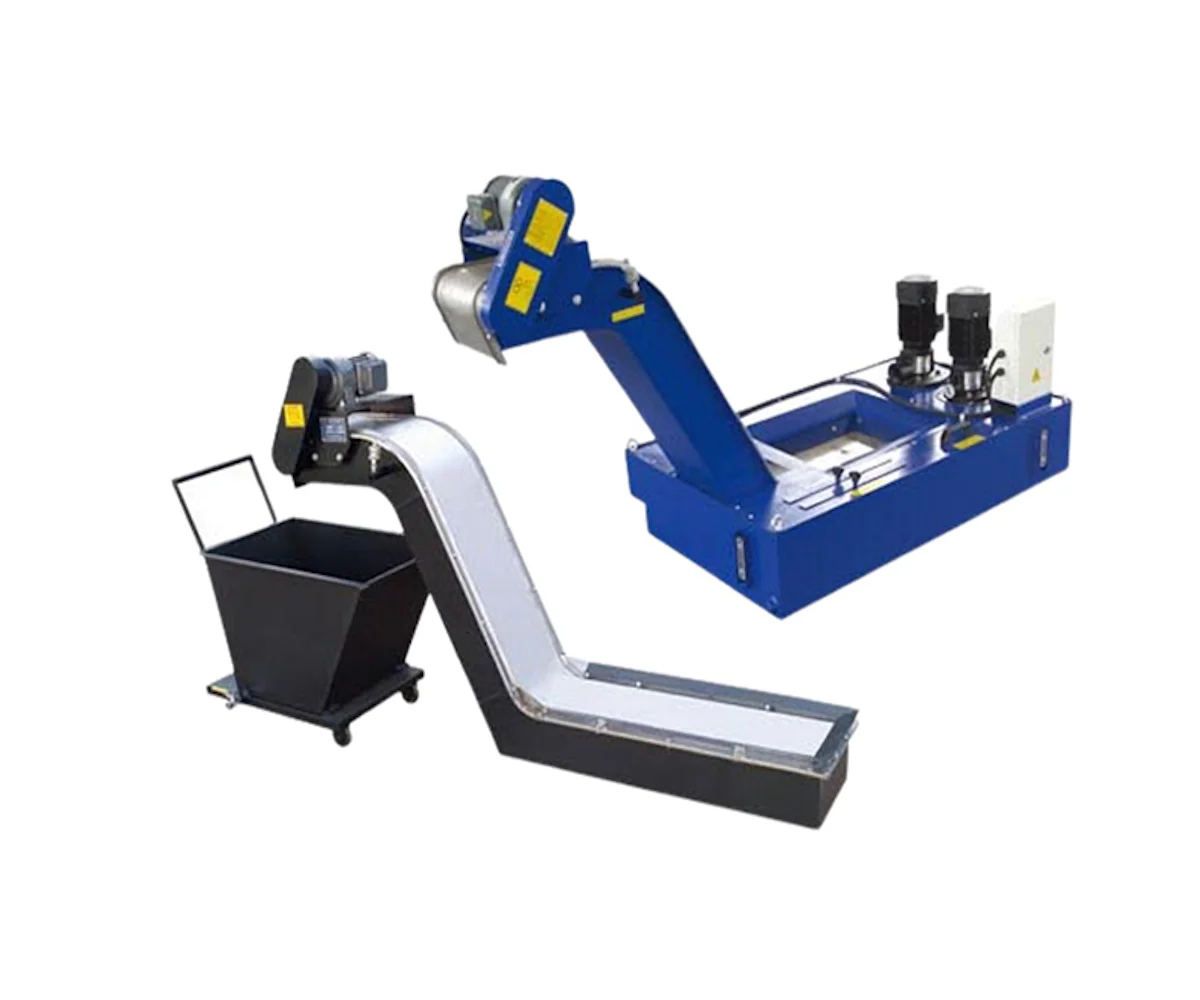

Magnetic Chip Conveyor

The magnetic force of the strong magnetic field generated by the permanent magnet material is used to adsorb the chips on the working magnetic plate of the chip removal machine or the iron chips in the oil and the emulsion in the form of particles, powders and lengths of ≤100 mm are adsorbed and separated and transported to the specified chip collecting box.

Magnetic Chip Conveyor:

The magnetic chip conveyor plays a crucial role in chip management, specifically designed for ferrous material applications that produce small chips, fines or iron scraps up to 100 mm in length. The system effectively separates and removes small debris and fine particles from oil or emulsions, ensuring clean operation. The stationary sheet metal belt works in tandem with powerful magnets rotating underneath, which attract and transport the ferrous chips to a designated chip collection box. Their closed system further enhances efficiency by automatically lubricating all internal parts, eliminating the need for maintenance, oil refills or manual lubrication of bearings and bushings.

They provide specialized designs tailored for challenging wet fines applications, offering exceptional performance even in environments involving heavy oil and grease. Equipped with rare earth magnets, these systems deliver maximum strength to handle high-volume operations efficiently. Their custom fabrication capabilities cover a wide range of options, including conveyor configurations, leg lengths, incline angles, chain designs, widths, drive system components, optional safety features and integrated coolant reservoirs.

Features:

Ideal for ferrous chips/fine chips, small parts and stampings.

Submersible waterproof construction.

Fully enclosed with no moving external parts.

Special design for difficult wet fine particle applications.

Self-adjusting chain tensioner.

Heavy-duty stainless steel skids.

Transport wet or dry materials at steep angles.

Safety/maintenance friendly.

Minimal maintenance required.

Customized:

Heavy-duty stainless steel top cover/sliding plate.

Completely enclosed, with no moving parts or belts to replace.

Self-adjusting chain tensioner.

Carries wet or dry material at a steep angle.

Submersible waterproof construction.

Magnetic Belt Conveyor Applications:

Machine tool chip removal.

Parts handling.

Stamping.

Scrap handling.

Sawing.
