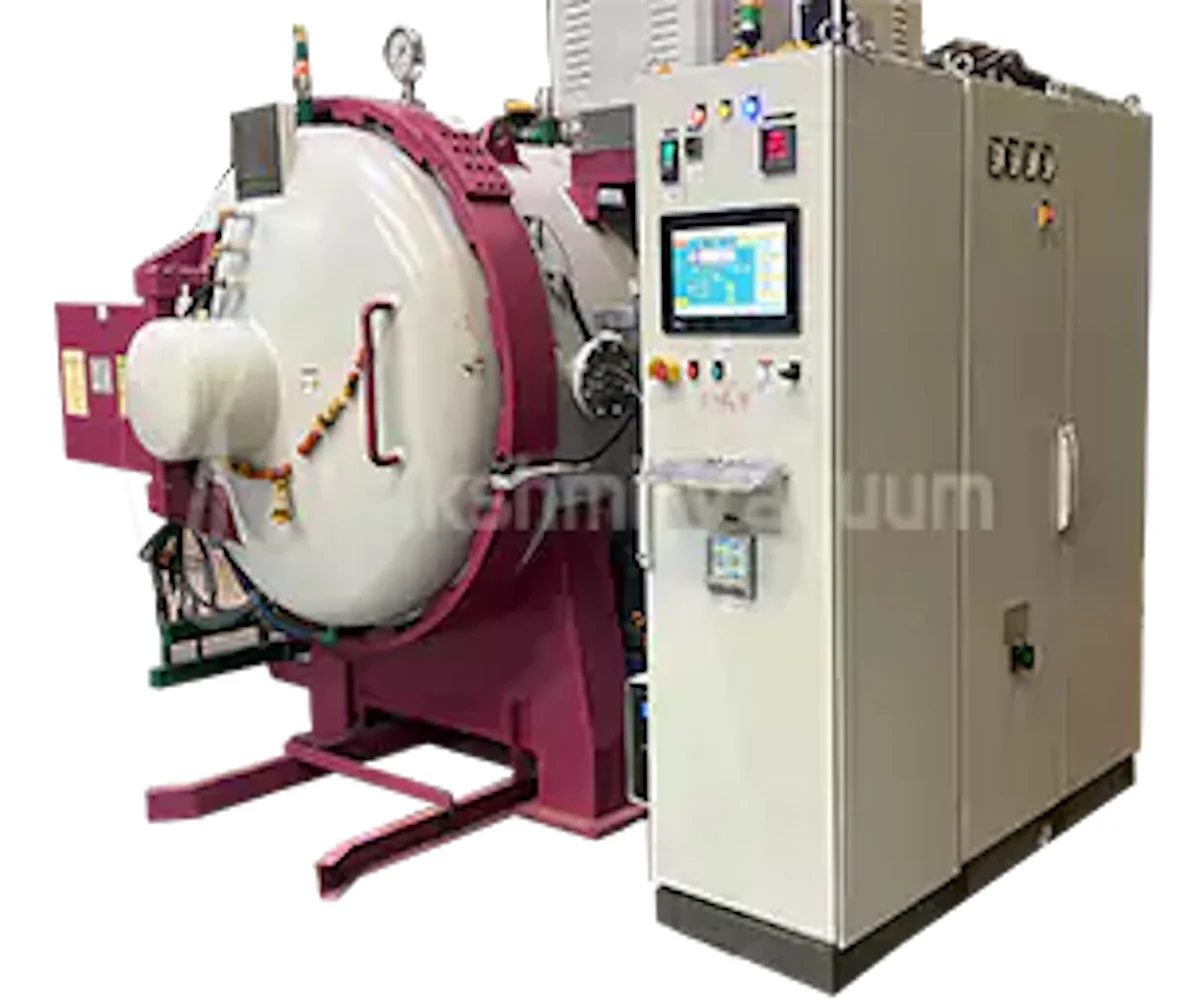

Vacuum Hardening Furnace
By: Lakshmi Vacuum Technologies Pvt. Ltd.
Details
Price:Available on request|Useful working area:900 x 900 x 1200mm/ customizable|Maximum temperature:1250°C
Description
Definition: A furnace that hardens steel and alloys by heating under vacuum and rapidly cooling using high-pressure gas quenching.
Working: The material is heated to austenitizing temperature in a vacuum, then quenched with inert gas to achieve hardness and structural transformation.
Product Specification:
|
S.No. |
Parameter |
Technical Details |
|
1 |
Useful working area |
900 x 900 x 1200mm/ Customizable |
|
2 |
Maximum Temperature |
1250°C |
|
3 |
Hot Zone |
Graphite/All metal |
|
4 |
Vacuum level |
1 X 10-2 mbar (1 X 10-6 if required) |
|
5 |
Charge weight |
900 kg |
|
6 |
Furnace Vessel |
Carbon Steel/SS |
|
7 |
Maximum Quenching Pressure |
6/10/12/15 bar or oil quench |
|
8 |
No. of Zones |
1 or 3 Zones Dependable |
|
9 |
Power supply |
Heavy duty 415V AC, 50Hz three phase |
|
10 |
Control System |
PLC, IPC with SCADA |
|
11 |
Application |
Tool steels, dies, aerospace parts, precision components |
|
12 |
Cooling System |
High-pressure inert gas quenching (N₂ / Ar) |
