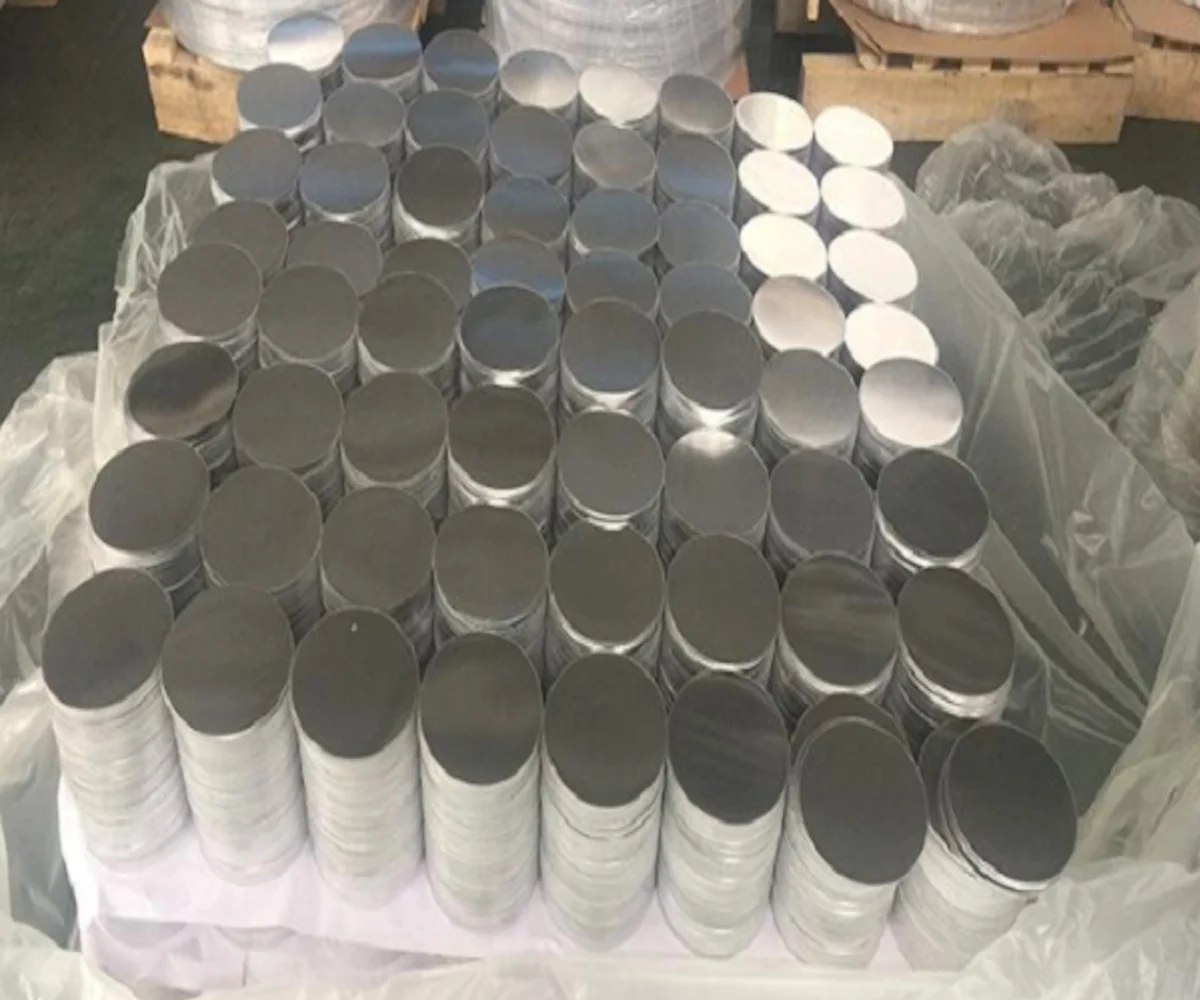

1100 Aluminium Disc

1100 Aluminium Circle/Disk Specifications/Date Sheet:

1100 aluminium circle has high thermal conductivity, and when they are used as the production material of cookware, the cookware will be able to quickly transfer the heat from the fire source to the food, providing good conditions for cooking. As a stable metal material, the aluminium disc 1100 itself will not rust. When other metals are added in the process of production, they will have high corrosion resistance and can resist the corrosion of a variety of substances. It makes the cookware meet the corresponding requirements.

Aluminium Circle 1100 Specification:

Alloy:	1100
Alloy Designations:	AA1100, A1100, 1100A, Al99.00
Anneal State:	O, H12, H14, H18,
Hardness:	20HB to 35HB
Standard:	GB/T 3880-2012, ASTM B209
Thickness:	0.2mm--- 6.0mm
Diameter:	20mm--- 1500mm
Thickness Tolerance:	+/- 0.02mm
Diameter Tolerance:	+/- 1mm

Available in aluminium circle 1100, aluminium discs 1100, aluminium wafer 1100, aluminium round discs 1100, aluminium circle 1100 o, aluminium circle 1100 H12, aluminium circle 1100 H14, and aluminium circle 1100 H14.

Aluminium Disk 1100 Chemistry Composition:

Alloy	Si	Fe	Cu	Mn	Mg	Cr	Ni	2n		Ti	Zr	A1
1100	0.95Si+Fe	—	0.05~0.20	0.05	—	—	—	0.1	i	—	—	99

Aluminium Disk 1100 Mechanical Properties and Features:

Temper	Antitensile strength N/m²	Elongation rate (%)	Dimension Control	Surface	Packing
O (soft)	78 MPa (8 ksi - 12 ksi)	35 (above 2.5 Ksi)	Qualified	Qualified	Qualified
H12 (H22)	95 MPa (11 ksi - 16 ksi)	18 (above 9 Ksi)	Qualified	Qualified	Qualified
H14(H24) Half-hard	123Map (12Ksi - 17Ksi)	7 (above 9 Ksi)	Qualified	Qualified	Qualified
H18 (Full Hard)	140 (above 16 ksi)	4 (above 10 ksi)	Qualified	Qualified	Qualified

Aluminium Circle 1100 Characteristics:

1. The aluminium content is more than 99% and has excellent molding properties;

2. High reflectivity.

3. Stable performance: surface anodization is possible.

4. Good thermal conductivity

5. Lightweight, easy to handle

Aluminium disk blanks 1100 application:

1. General cookware post-process: grinding, sandblasting, etc., pot lids, aluminium pots.

2. Lighting accessories: lampshades, light, laminate light and street lights,

3. Signage and construction materials: traffic road signs, curtain walls, and ceilings.

4. Baking dishes, coffee pots, steamers, pans, sieve pots, bowls, wine containers, teapots, vases, and frying pans.
