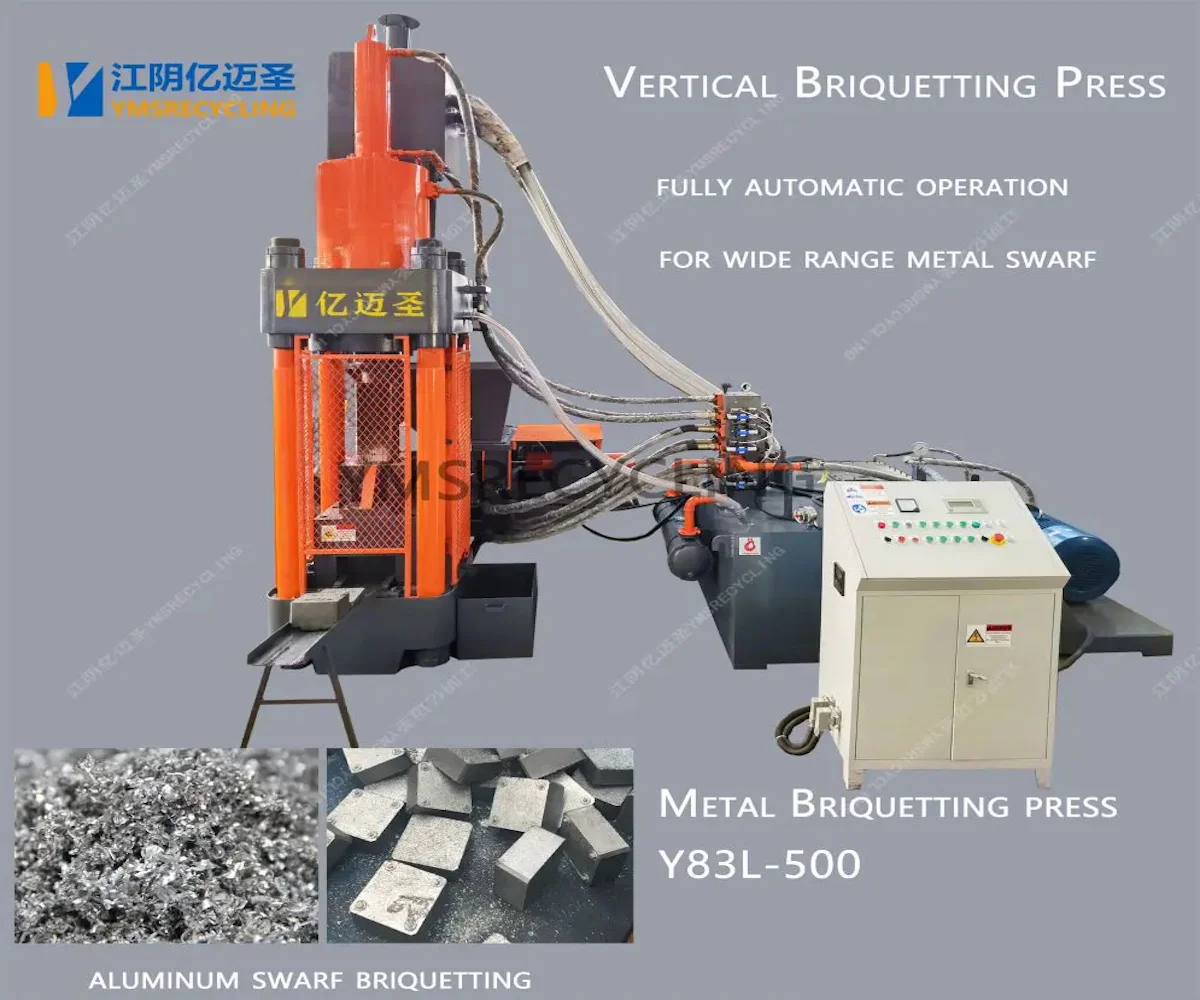

Vertical Aluminium Chips Briquetting Machine
By: Jiangyin Yimisheng Hydraulic Machinery Co., LTD.
Details
Price:Available on request
Description
The vertical aluminium chips briquette machine plays an important role in aluminium recycling, which makes aluminium recycling a relatively simple and straightforward process. Aluminium scraps can be directly pressed into a briquette by the metal briquetting press, ideally then pressed into compact briquettes using a metal briquette press.
Fully automatic operation
Higher profits with briquettes
Operate friendly
Strong-usability and high-expandability
| Model No. | Y83L-500 |
| Brand | YMSRECYCLING |
| Place Of Origin | China |
| Status | New |
| Video Factory Inspection | Provided |
| Mechanical Test Report | Provided |
| Marketing Type | Ordinary Product |
| Core Component Warranty Period | 1 Year |
| Core Components | Plc, Motor, Pressure Vessel, Pump |
| Warranty Period | 1 Year |
| Core Selling Point | Automatic |
| Out-of-warranty Service | Video Technical Support, Online Support, Spare Parts, Field Maintenance and Repair Service |
| Applicable Industry | Manufacturing Plant, Other |
| Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets) | Brazil, Russia, Thailand, Australia, Ukraine |
| Showroom Location (in Which Countries Are There Sample Rooms Overseas) | Brazil, Russia, Ukraine, Malaysia, Australia |
| Briquetting Efficiency | 3-4 Briquettes/Min |
| Voltage | 380 V/3 phase/50 Hz; Support Customized |
| Operation | Plc Control Fully Automatic Operation |
| System Working Pressure | 20~22 MPa |
| Oil Cooling | Water Cooler; Air Cooling Is Optional |
| Maximum Force | 500 tons |
| Hydraulic Oil | ~1600 l |
| Briquette Diameter Size | 110-200 mm |
| Briquetting Capacity | 270~2000 kg/h (Aluminum Chips) |
| Motor Power | 37 kw |
The prepressing cylinder does the initial compression; the feeding cylinder pushes the metal chips into the mold cavity, which will be compressed into a briquette in the mold cavity by the main cylinder.
The eject cylinder ejects the briquettes.
