Container Shear Machine
By: Jiangsu Gaode Hydraulic Machinery Co., Ltd.
Details
Price:Available on request
Description

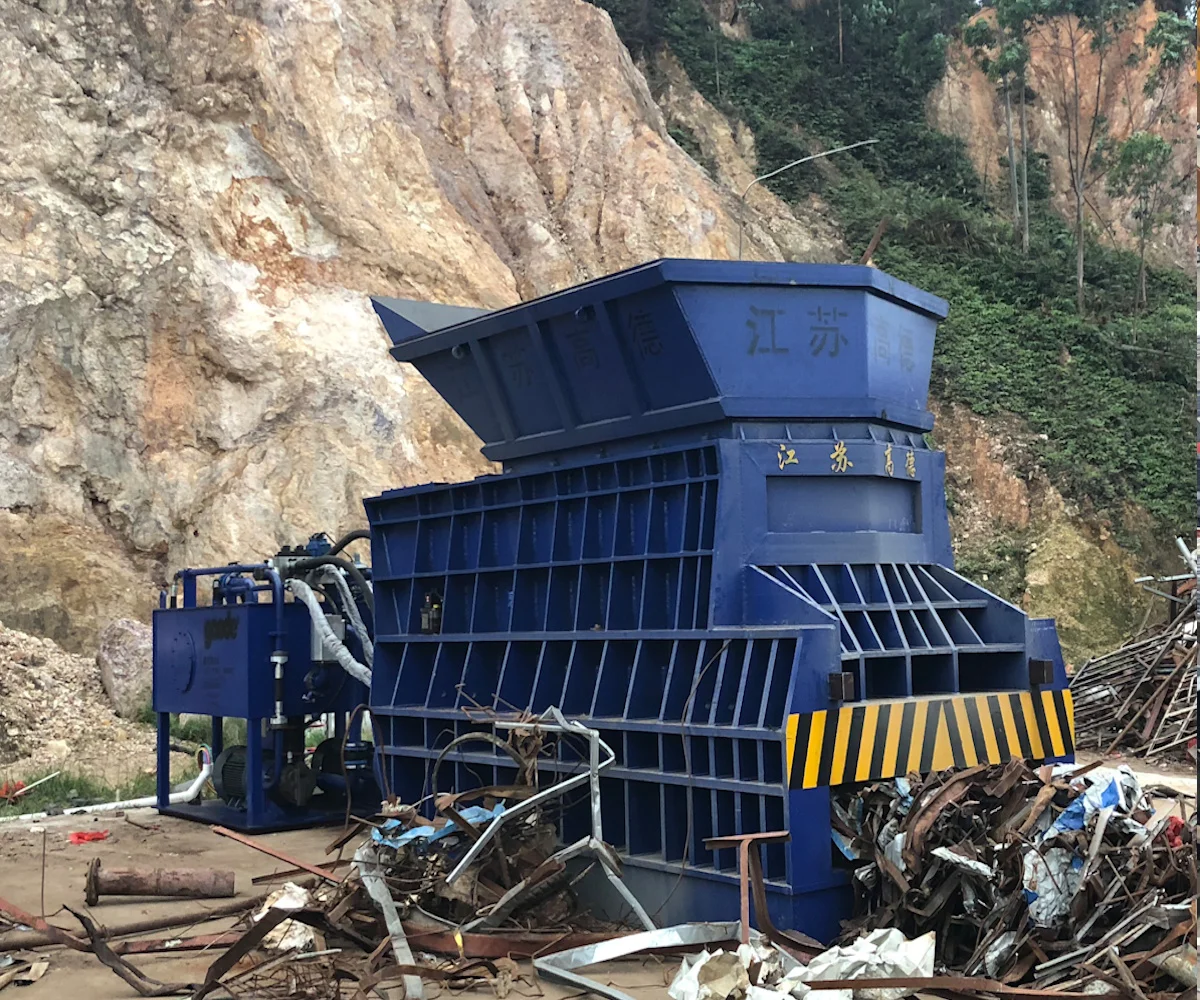

Container Shear Machine is a hydraulic scrap cutting system for compact, safe and efficient processing of aluminium scrap and other metal scrap. The machine supports top feeding, enclosed cutting, mobile customization and automatic operation for recycling yards and metal processing plants. Imported wear-resistant plate or Hardox-wear plate protection on inner surfaces. Vehicle-mounted mobile customization available.
Features:
- Products with independent patents, mature technology and long service life.
- Imported Hardox-500 wear-resistant plates, which are durable and result in low-comprehensive operating costs.
- Fully enclosed structure with high safety performance, enabling continuous feeding and discharging, featuring high efficiency and energy saving.
- The equipment requires no installation and can be used immediately upon arrival. Support legs can be added, and the integrated design facilitates transfer operations.
- PLC control, with manual/automatic and remote operation modes.
- Fully automatic and uninterrupted operation, requiring only one feeding operator, with high output.
- Wide application range and few restrictions on material input.
- Power system or diesel system, optional.
Technical Parameter:
|
Model |
Blade Length (mm) |
Shear Length (mm) |
Output (Ton/h) |
Shear Force (T) |
Power |
|
CS-3150 |
1000 |
300 |
3-6 |
315T |
22KW*2 |
|
CS-4000 |
1400 |
400 |
5-8 |
400T |
37KW*2 |
|
CS-5000 |
1400 |
400 |
7-10 |
500T |
45KW*2 |
|
CS-6300 |
1600 |
400 |
8-15 |
630T |
55KW*2 |
|
CS-8000 |
1600 |
400 or 500 |
12-20 |
800T |
55KW*3 |
|
CS-10000 |
2000 |
500 or 600 |
15-35 |
1000T |
55KW*4 |
|
CS-12500 |
2000 |
500 or 600 |
25-40 |
1250T |
55KW*5 |
