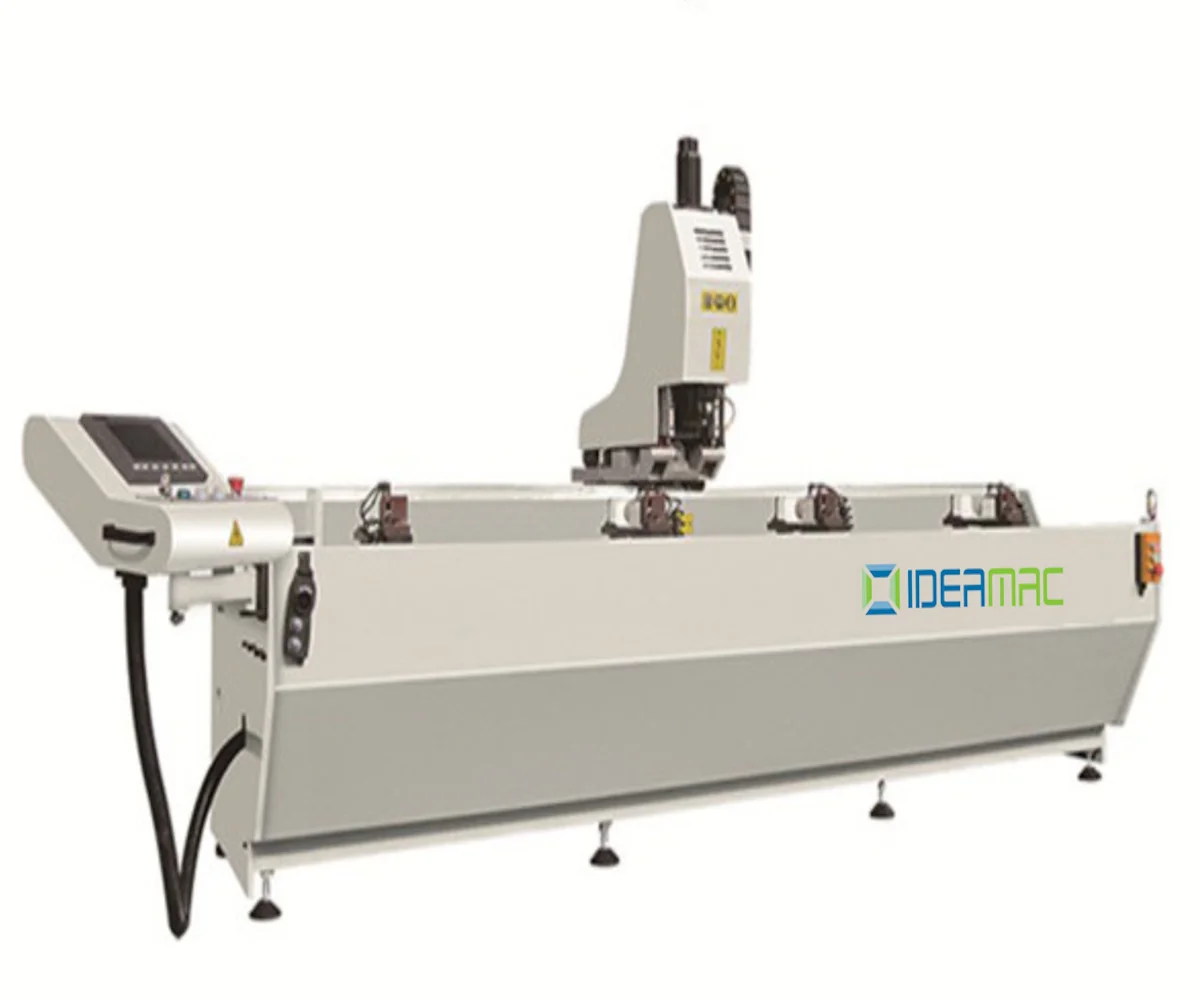

CNC Drilling and Milling Machine

Designed for the processing of round holes, slot holes, keyholes, special-shaped holes, etc. of industrial aluminium alloy profiles, doors, windows, and curtain wall aluminium alloy profiles, as well as the milling, chamfering, and plane carving of aluminium profiles.

• This machine can achieve all kinds of aluminum profile holes, slot milling
• Equipped with a tool-setting gauge, the length of the replacement tool will be compensated through the system automatically. it not only save time for correct the tools, but also improve the working efficiency
• Equipped with a heavy-power, high-speed electric spindle, it features reliable performance, stable rotation, lower noise and strong milling capacity
• It can realize three axis moves linkage or two axis mover separately
• High precision linear guides, ball screw, rack and pinion and imported servo motor to ensure smooth
• With high positioning and machining accuracy
• The workable can be rotated in any position among -90, 0, and 90 degrees; it can complete three-sided milling processing once the profile
• The main shaft adopts air-cooled electric main shaft with a power 3.5 kW, speed of 0～18000 rpm, high precision, good safety and high reliability
• Adopt Taiwan\'s new generation CNC control system. Equipped with professional CAD-CAM programming software
• All the motion pairs adopt imported guide rails and sliders, the X-axis adopts a high-precision helical gear and helical rack drive, and the Y-axis and Z-axis adopt a high-precision ball screw drive. The transmission is stable, effectively improving the precision of the whole machine
• A manual pump oil supply system is adopted, and the tool adopts a system control spray cooling device
