Double Cavity Fully Automatic Aluminium Foil Container Making Machine
By: Guangzhou KONIX Machinery Co.,Ltd
CategoryAluminium Consumer Goods EquipmentManufacturerGuangzhou KONIX Machinery Co.,LtdMin Order Quantity1.00 Unit(Trial Order)Delivery Lead Time50Place of OriginChinaSupply Ability99Packaging Details99Transportation Details99
*Login Required
Details
Price:Available on request|Max. coil outside Diameter:Ф800mm|Max. coil width:700mm|Coil Inner Diameter:ф76mm (3 inch)|Feeding Speed:0-30M/min|Feeding Length:20-9999mm|Feeding Tolerance:+/-0.1mm|Body dimensions:1400*1300*1100mm|length controller dimensions:700*900*800mm
Description

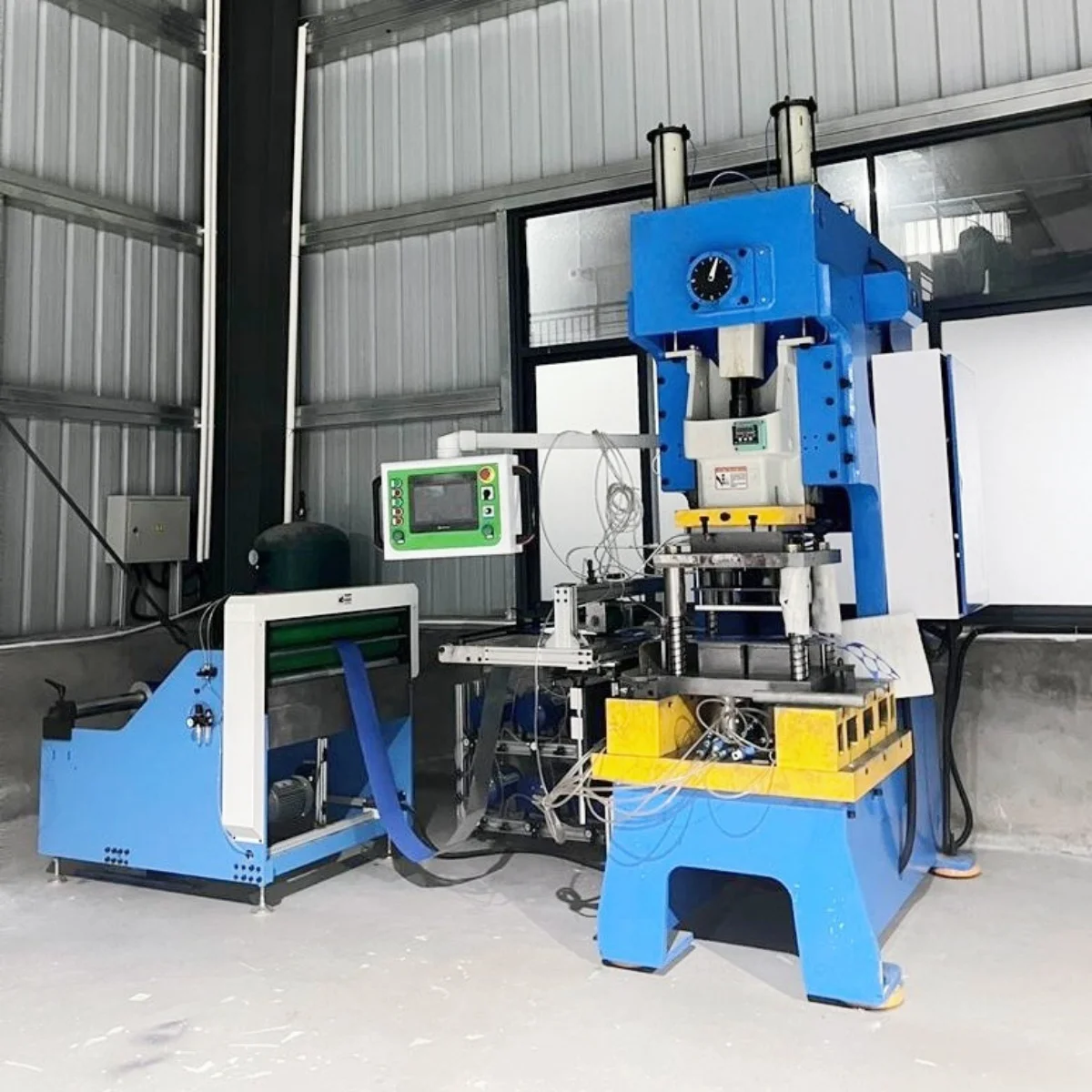

Aluminum Foil Container Production Line with 45T Press and 2 cavities foil container mould.
We are the manufacturer, supplier and exporter of Double Cavity Fully Automatic Aluminium Foil Container Making Machine. Our machine consists of: 1) 45 Ton Pneumatic Press2) Auto Oil Lubrication Unit
| Lubrication tank material | SUS304 |
| Nominal Capacity | 450KN |
| Slide strokes per minute | 45-70 |
| Stroke of Slide | 220mm |
| Max die set height | 450mm |
| Die height adjustment | 90mm |
| Distance from slider center to fuselage | 225mm |
| Motor power | 5.5KW |
| Press pressure | 0.5Mpa |
| Blanking hole diameter | 300*200mm |
| Distance between workbench and ground | 900mm |
| Bolster Size | 810*440mm |
| Bolster Thickness | 110mm |
| Bolster Surface Height | 800mm |
| Slider bottom size | 410*340 |
| Overall dimensions | 1435*1075*2400mm |
| Weigh | 4000kg |
