Gap Level Actuator

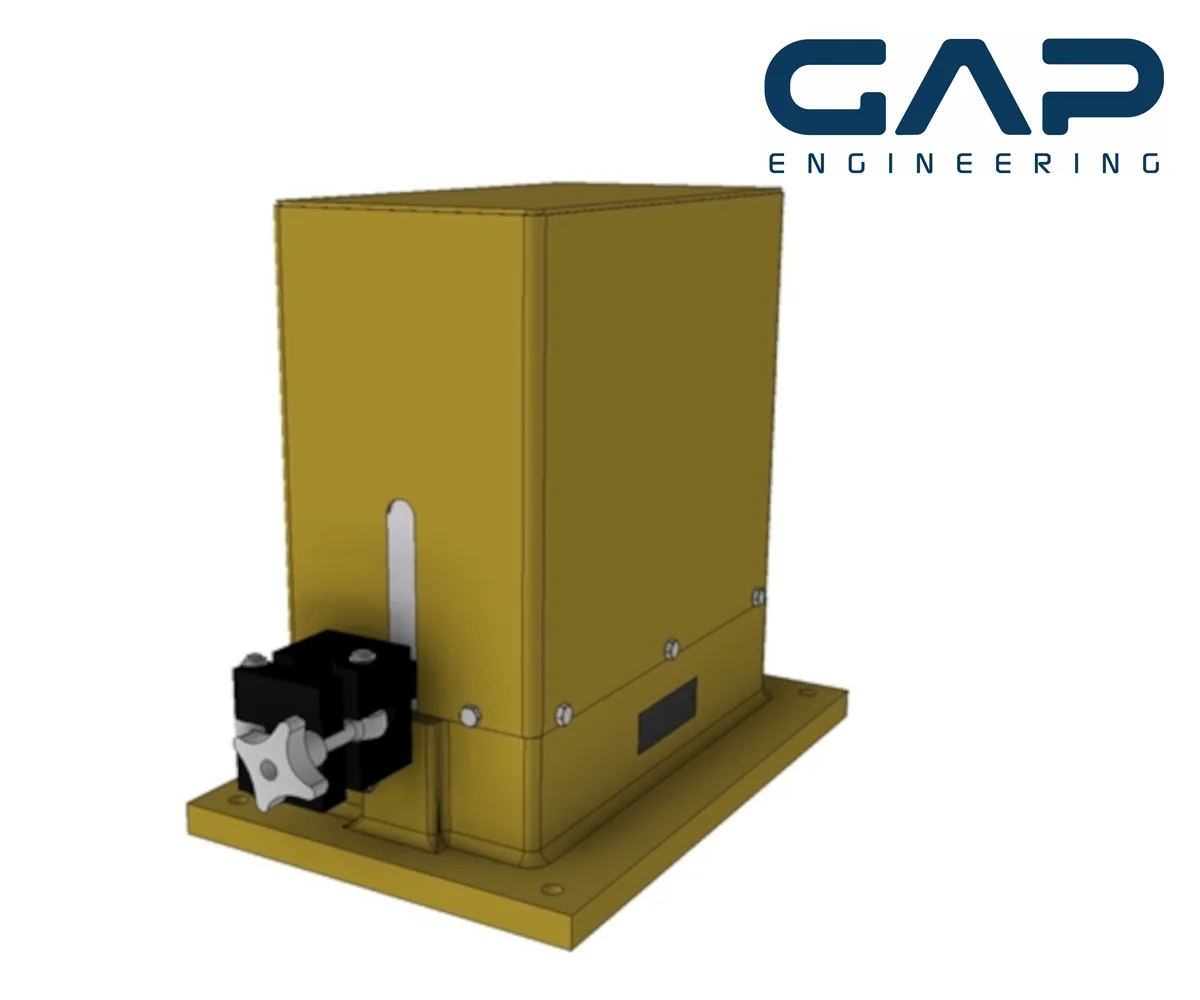

GAP Level Actuator GLA is a liquid metal flow control device manufactured by GAP Engineering SA in Switzerland for aluminium casting operations. The GAP Level Actuator GLA for aluminium casting is designed to position the plug in the launder or casting spout, allowing precise regulation of molten aluminium flow into the moulds.

The actuator is built with a step motor, position sensor and limit switches. It works with an external electronic control board that controls the step motor and supports automatic management during emergency stop conditions. This makes the GAP Level Actuator GLA for casting spout control suitable for casthouses that need stable, responsive and safer regulation of incoming aluminium flow.

With a movement range of 0–48 mm, the GLA adjusts the plug position to open or close the aluminium flow path in the casting channel. When used with the GAP Level Sensor GLS, the actuator supports optimal regulation of the required metal level in moulds.

This combination helps aluminium producers improve casting stability, reduce manual intervention and maintain better process consistency during production.

Key details:

* Product: GAP Level Actuator GLA
* Application: Molten aluminium flow control in casting troughs, launders and spouts
* Range of movement: 0–48 mm
* Accuracy: +/- 0.5 mm
* Power supply: 24 VDC
* Calibration: Factory calibrated
* Testing: Autotest feature
* Interchangeability: Less than 5 minutes
* Installation: Fixed on the steel part of the casting trough with an athermal shield
* Place of origin: Switzerland

Available for aluminium casthouses looking for precise casting spout control, automated molten metal flow regulation and reliable integration with GLS level sensing systems. Send an enquiry to GAP Engineering SA to discuss specifications and pricing.
