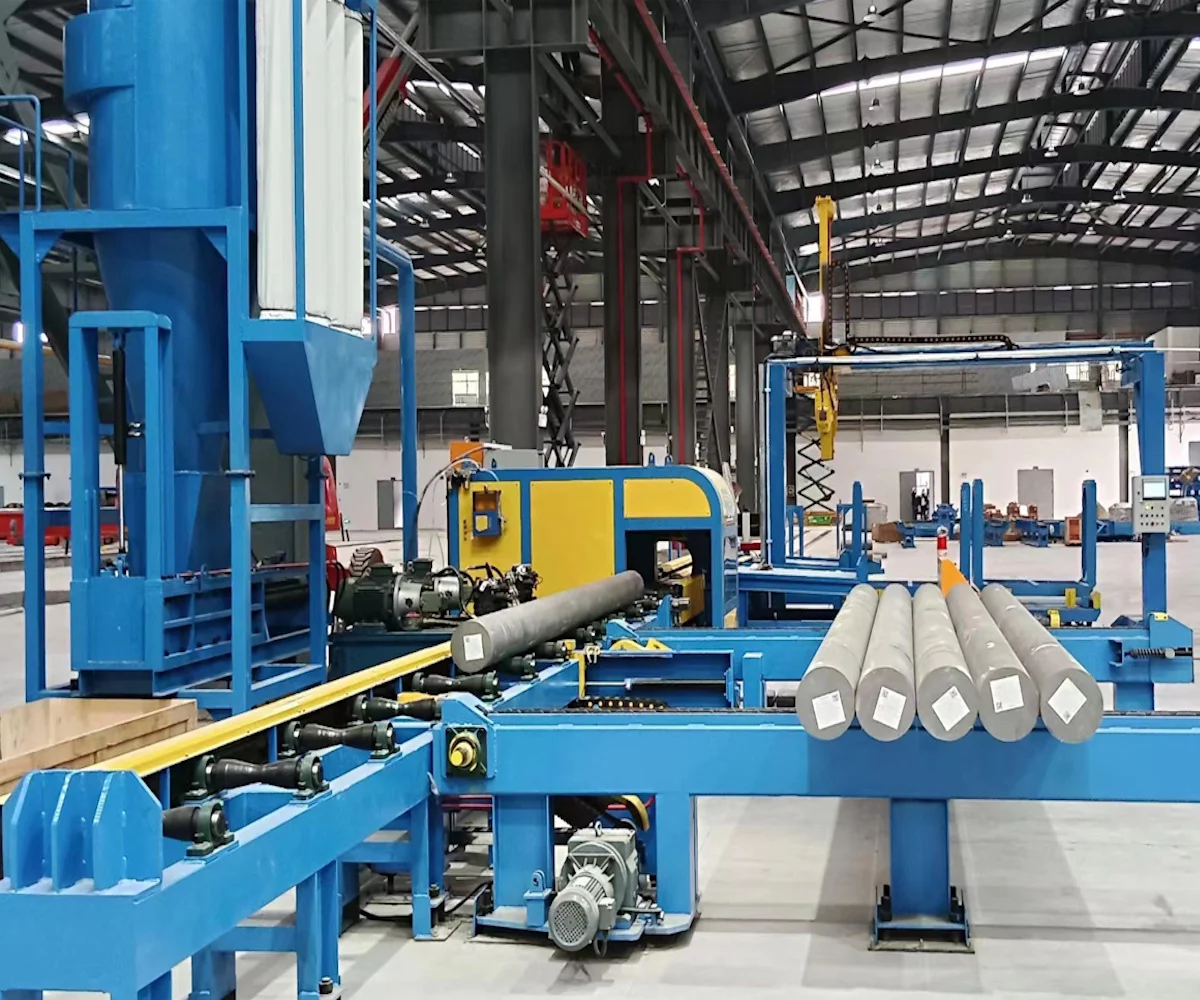

Automatic Aluminium Billet Sawing Machine

1.Arc Alignment Unit                                              : Align the aluminium rod into the storage rack through buffering
2.Loading and Storage System (large translation) : Stores  sawn aluminum rods
3.Translation Rod Device (small translation)         : Lift the large translation aluminum rod onto the conveyor roller
4.Roller Conveyor System (conveyor frame)         : Conveying aluminium rods that have not been sawn or have been sawn
5.Fixed Length Mechanism Device                        : Used to determine the length of the rod and adjust the length of the finished rod
6.Circular Saw Cutting Host                                   : Circular saw cutting, the host completes the clamping and sawing of aluminum bars
7.Sawing Lubrication Device                                  : Atomization of trace amount of high lubricating cutting oil
8.Rod head/tail Mechanism                                    : Automatically drops into the collection box
9.Sawdust Collection and Pressing Device            : Cyclone type chip suction separator, collecting and pressing blocks
10.Laser/pinhole Coding System                           : Can code any character on the end face of the aluminum rod
11.Finished Rod Storage                                       : Finished long aluminum rod storage
12.Gantry Stacking System                                   : The gripper picks up several counted aluminum rods on aV-shaped frame
13.Electric Control System                                    : Siemens PLC programming module
