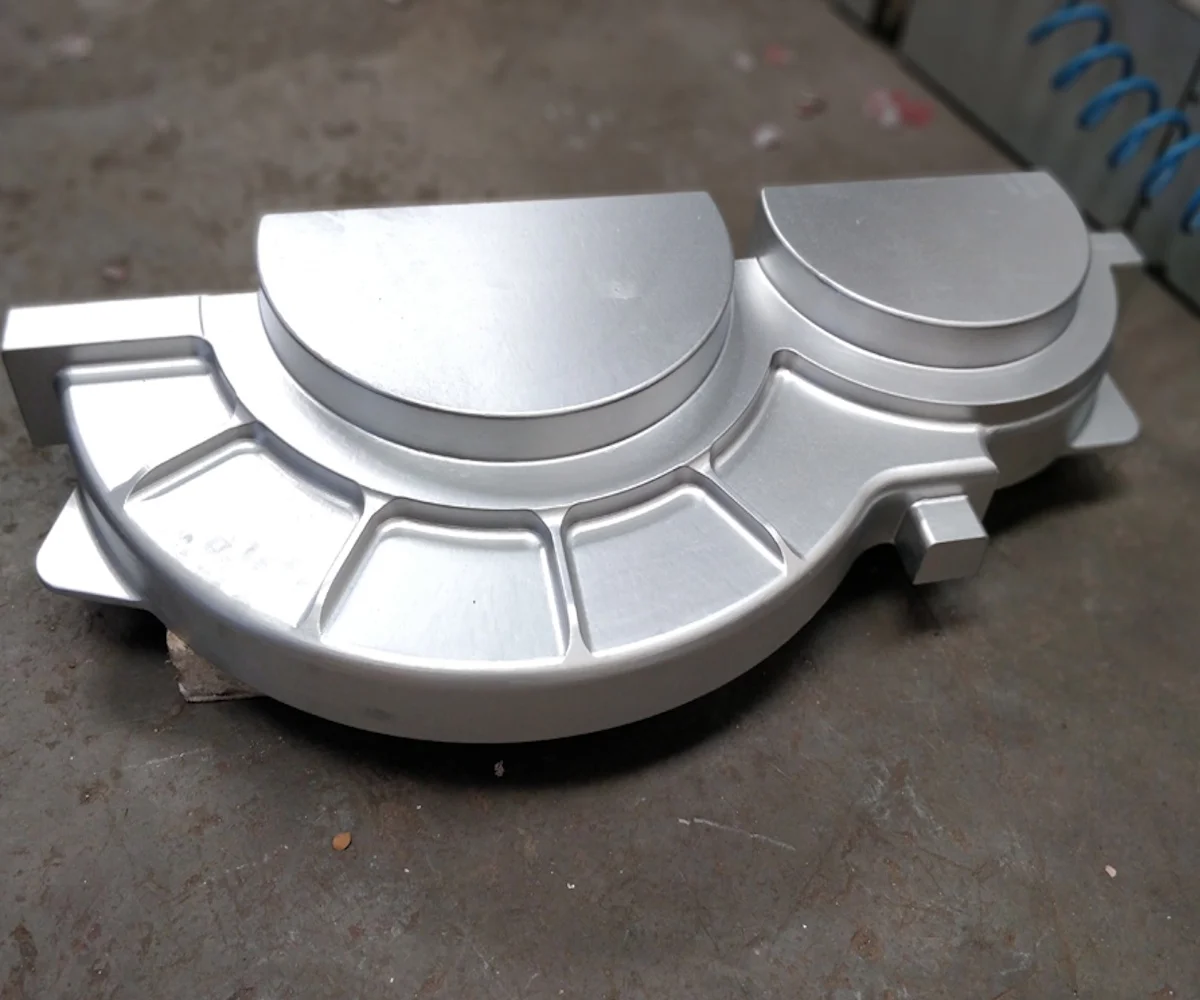

Pattern Toolings

Patterns are used to create the shape in the sand, into which molten metal will be poured to become the casting. Patterns can be made from metal. Most patterns are made from aluminum, called match plates and have a long life before wearing out. Pattern makers also manufacture the core boxes required. Shell core boxes can be made in cast iron, steel or aluminum. CO2 core boxes are made in aluminum or cast iron.

They have highly experienced patternmakers to make any type of core box, or model that can be designed. We can make pattern by various grade Aluminum, Steel, Cast iron.

They undertake pattern/core box design and construction, gating and risers, alterations to existing tooling, and cast ability enhancements. Foundry tooling consists of patterns, core boxes, models and all the rigging that makes a complete job ready to run in a foundry.

Specializing in hand fabricated, and CNC machined patterns, our skilled craftsman can create loose patterns, match plates, cope and drag patterns and boxes, shell patterns, custom flexible patterns, and machine specific mounted patterns. Patterns are produced from aluminum, iron, and tool steels, and utilize the latest CAD/CAM systems to ensure precision.
