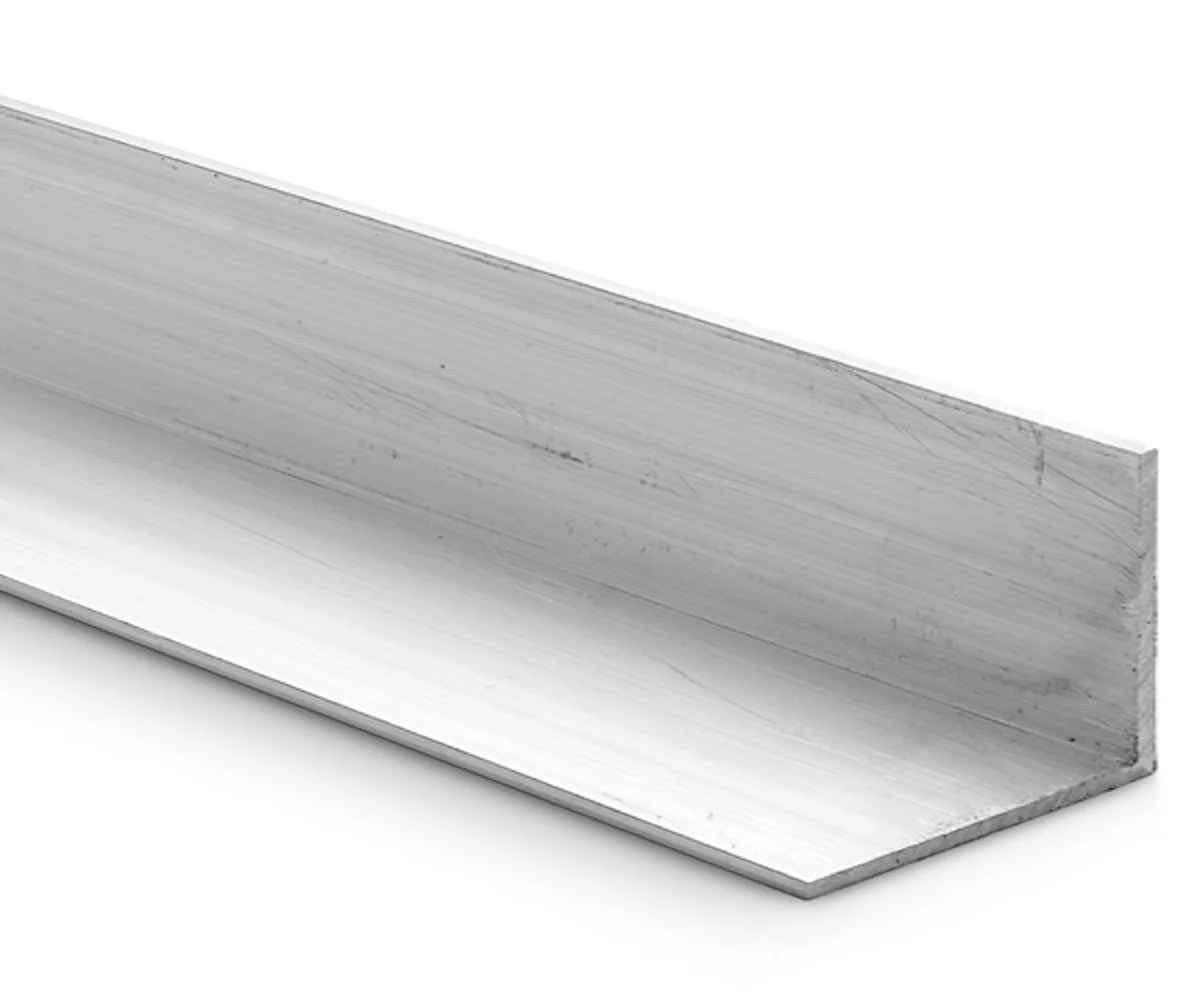

Aluminium Angle Bar
Details
Price:Available on request
Description
Aluminium angle bar are profile shapes used to reinforce, flatten or protect the edges of aluminium sheets or plate. These angle bar, typically L-shaped, are used for a variety of structural and decorative purposes.
Aluminium angle bar are used in the construction industry to reinforce corner details in both interior and exterior spaces. For example, they can be used at interior wall corners or on exterior facades to provide an aesthetic appearance and increase the corner's durability. They can also be used in furniture manufacturing, interior decoration and other industrial applications.
These angles are typically produced using aluminium extrusion. This process involves melting aluminium and pouring it into special molds. The resulting L-shaped profile is created. These profiles typically come in various sizes and thicknesses, making them suitable for a variety of projects.
There are several reasons why aluminium angles are preferred. These include its lightweight, corrosion resistance, easy formability and aesthetic appeal. Additionally, aluminium's longevity and low maintenance requirements are also advantageous.
Aluminium Angle Features:
|
A (mm) |
B (mm) |
SA (mm) |
SB (mm) |
Kg/m (mm) |
|
10 |
10 |
1.2 |
1.2 |
0.061 |
|
10 |
5 |
1.5 |
1.5 |
0.055 |
|
10 |
10 |
1.5 |
1.5 |
0.075 |
|
10 |
10 |
2 |
2 |
0.098 |
|
15 |
10 |
1.5 |
1.5 |
0.096 |
|
15 |
10 |
2 |
2 |
0.125 |
|
15 |
15 |
1.2 |
1.2 |
0.094 |
|
15 |
15 |
2 |
2 |
0.152 |
|
17 |
17 |
1 |
1 |
0.089 |
|
20 |
10 |
1 |
1 |
0.08 |
|
20 |
10 |
1.5 |
1.5 |
0.116 |
|
20 |
10 |
2 |
2 |
0.152 |
|
20 |
10 |
2.5 |
2.5 |
0.19 |
|
20 |
12 |
1 |
1 |
0.084 |
|
20 |
15 |
2 |
2 |
0.179 |
|
20 |
20 |
1 |
1 |
0.106 |
|
20 |
20 |
1.2 |
1.2 |
0.126 |
|
20 |
20 |
1.5 |
1.5 |
0.157 |
|
20 |
20 |
2 |
2 |
0.206 |
|
20 |
20 |
3 |
3 |
0.3 |
|
25 |
25 |
0.95 |
0.95 |
0.126 |
|
25 |
25 |
1.2 |
1.2 |
0.159 |
|
25 |
25 |
2 |
2 |
0.26 |
|
25 |
25 |
3 |
3 |
0.382 |
|
30 |
10 |
1 |
1 |
0.11 |
|
30 |
10 |
1.5 |
1.5 |
0.157 |
|
30 |
15 |
1 |
1 |
0.119 |
|
30 |
15 |
1.2 |
1.2 |
0.143 |
|
30 |
15 |
2 |
2 |
0.233 |
|
30 |
20 |
0.9 |
0.9 |
0.12 |
|
30 |
20 |
1.2 |
1.2 |
0.159 |
|
30 |
20 |
2 |
2 |
0.26 |
|
30 |
25 |
1.5 |
1.5 |
0.217 |
|
30 |
25 |
2 |
2 |
0.287 |
|
30 |
25 |
3 |
3 |
0.423 |
|
30 |
30 |
1 |
1 |
0.152 |
|
30 |
30 |
1.2 |
1.2 |
0.191 |
|
30 |
30 |
1.5 |
1.5 |
0.238 |
|
30 |
30 |
2 |
2 |
0.314 |
|
30 |
30 |
3 |
3 |
0.463 |
|
30 |
30 |
4 |
4 |
0.607 |
|
31 |
31 |
4 |
4 |
0.629 |
|
35 |
18 |
3 |
3 |
0.406 |
|
35 |
22 |
2 |
2 |
0.298 |
|
35 |
35 |
2 |
2 |
0.369 |
|
35 |
35 |
3 |
3 |
0.545 |
|
35 |
35 |
4 |
4 |
0.715 |
|
36.5 |
5 |
1.5 |
1.5 |
0.163 |
|
36.5 |
10 |
1.5 |
1.5 |
0.183 |
|
40 |
10 |
1.2 |
1.2 |
0.159 |
|
40 |
20 |
1.2 |
1.2 |
0.191 |
|
40 |
20 |
1.5 |
1.5 |
0.238 |
|
40 |
20 |
2 |
2 |
0.314 |
|
40 |
20 |
3 |
3 |
0.463 |
|
40 |
28 |
6 |
6 |
1008 |
|
40 |
30 |
1.2 |
1.2 |
0.224 |
|
40 |
30 |
1.5 |
1.5 |
0.278 |
|
40 |
35.5 |
4 |
4 |
0.775 |
|
40 |
40 |
1.2 |
1.2 |
0.256 |
|
40 |
40 |
1.5 |
1.5 |
0.318 |
|
40 |
40 |
2 |
2 |
0.423 |
|
40 |
40 |
3 |
3 |
0.626 |
|
40 |
40 |
4 |
4 |
0.824 |
|
40 |
40 |
5 |
5 |
1016 |
|
41.15 |
31.75 |
5 |
5(R4) |
0.92 |
|
42.8 |
10.5 |
1.3 |
1.3 |
0.183 |
|
50 |
16 |
5 |
5(R3) |
0.827 |
|
50 |
20 |
1.2 |
1.2 |
0.224 |
|
50 |
20 |
2.5 |
2.5 |
0.19 |
|
50 |
20 |
1.5 |
1.5 |
0.279 |
|
50 |
30 |
1.2 |
1.2 |
0.256 |
|
50 |
30 |
2 |
2 |
0.423 |
|
50 |
30 |
3 |
3 |
0.626 |
|
50 |
30 |
4 |
4 |
0.824 |
|
50 |
40 |
1.2 |
1.2 |
0.289 |
|
50 |
40 |
2 |
2 |
0.477 |
|
50 |
50 |
1.2 |
1.2 |
0.322 |
|
50 |
50 |
2 |
2 |
0.531 |
|
50 |
50 |
2.5 |
2.5 |
0.661 |
|
50 |
50 |
3 |
3 |
0.789 |
|
50 |
50 |
5 |
5 |
1287 |
|
50.8 |
25.4 |
3.2 |
3.2 |
0.633 |
|
50.8 |
50.8 |
6.35 |
6.35 |
1639 |
|
51.2 |
21.2 |
1.2 |
1.2 |
0.23 |
|
53 |
28 |
2 |
2 |
0.428 |
|
55 |
18 |
3 |
3 |
0.569 |
|
60 |
15 |
1.8 |
1.8 |
0.357 |
|
60 |
20 |
1.2 |
1.2 |
0.256 |
|
60 |
20 |
1.5 |
1.5 |
0.319 |
|
60 |
20 |
2 |
2 |
0.423 |
|
60 |
20 |
4 |
4 |
0.824 |
|
60 |
28 |
2.3 |
1.5 |
0.409 |
|
60 |
30 |
2 |
2 |
0.477 |
|
60 |
40 |
1.2 |
1.2 |
0.371 |
|
60 |
40 |
2 |
2 |
0.531 |
|
60 |
40 |
4 |
4 |
1040 |
|
60 |
40 |
5 |
5 |
1287 |
|
60 |
45 |
15 |
15 |
3670 |
|
60 |
60 |
1.5 |
1.5 |
0.482 |
|
60 |
60 |
1.5 |
1.5 |
0.482 |
|
60 |
60 |
3 |
3 |
0.951 |
|
60 |
60 |
5 |
5 |
1558 |
|
60 |
60 |
6 |
6 |
1854 |
|
70 |
20 |
2 |
2 |
0.477 |
|
70 |
40 |
4 |
4 |
1149 |
|
70 |
50 |
2 |
2 |
0.64 |
|
70 |
50 |
3 |
3 |
0.951 |
|
70 |
70 |
5 |
5 |
1816 |
|
75 |
50 |
5 |
5 |
1626 |
|
76 |
76 |
6 |
6 |
2374 |
|
80 |
20 |
1.2 |
1.2 |
0.321 |
|
80 |
20 |
1.4 |
1.4 |
0.373 |
|
80 |
20 |
2 |
2 |
0.531 |
|
80 |
30 |
1.3 |
1.3 |
0.383 |
|
80 |
40 |
1.5 |
1.5 |
0.482 |
|
80 |
40 |
4 |
4 |
1257 |
|
80 |
40 |
6 |
6 |
1865 |
|
80 |
80 |
6 |
6 |
2504 |
|
80 |
80 |
8 |
8 |
3295 |
|
80 |
80 |
10 |
10(R15) |
4065 |
For more detailed information including pricing, customisation and shipping.
