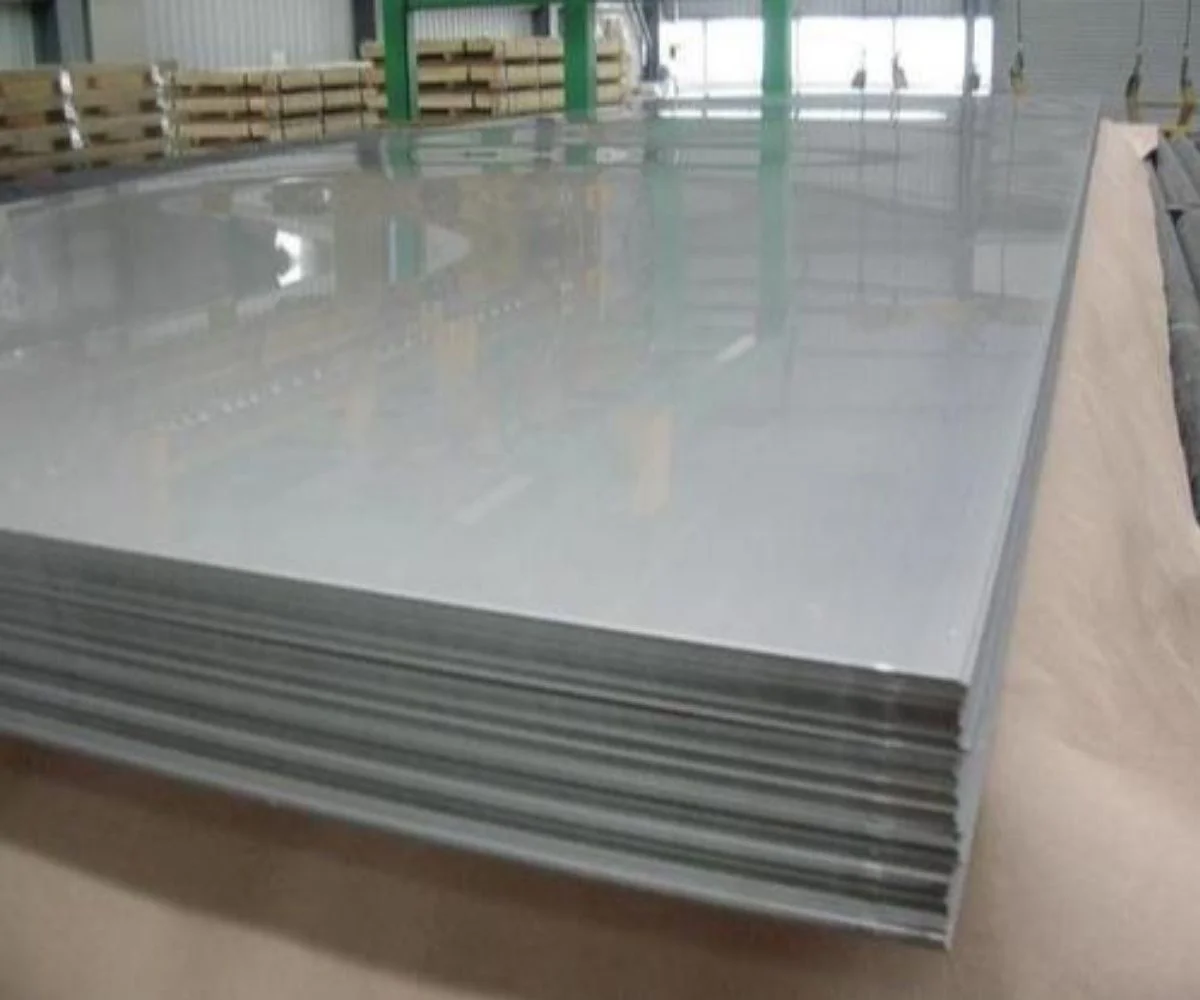

Aluminium Sheet

AA 6063 is an aluminium alloy, with magnesium and silicon as the alloying elements. The standard controlling its composition is maintained by The Aluminium Association. It has generally good mechanical properties and is heat treatable and weldable.



Temper Types

The most common tempers for 6063 aluminium are:

O - Soft
T6 - Solution heat treated and artificially aged


Supplied Forms

Extrusions
Tube
Bar
Rod


Tensile strength (σt): 145–186 MPa (21.0–27.0 ksi)

Specific heat capacity (c): 900 J/kg*K

Density (ρ): 2.69 g/cm3

Melting temperature (Tm): 615 °C (1,139 °F)

Thermal conductivity (k): 201-218 W/m*K

Linear thermal expansion coefficient (α): 2.34*10−5 K−1

Young's modulus (E): 68.3 GPa (9,910 ksi)




Additional Information:

Production Capacity: 100 MT
Delivery Time: 1 day
Packaging Details: Interleaving Packing. Optional protective layer film
