WAGON Volumetric Measurement

SENMAX Wagon Volume Measurement is a highly precise three-dimensional measurement system especially developed for measurements of wagon loading volumes. Contact free volumetric load measurement scanner uses latest laser scanning technology. It effectively scans and measures the loads on the moving open type trucks with high accuracy. Its intelligent algorithm produces real time load volumes and generates a report about the volume of the Load in each wagon.

The application has a high versatility and can be used for volume and profile measurements of all different materials - such as ore, boulders, blue metal, sand, waste management or even agri products - which are transported as bulk material on wagon. The application is also available in combination with a RFID Scanner (for tagged trucks), a HD camera for load image with report and a OCR camera for license plate capturing.

Operating Description
To accurately measure the volume of Load in the wagon, we use a very special volume data calculation algorithm implemented by SENMAX.

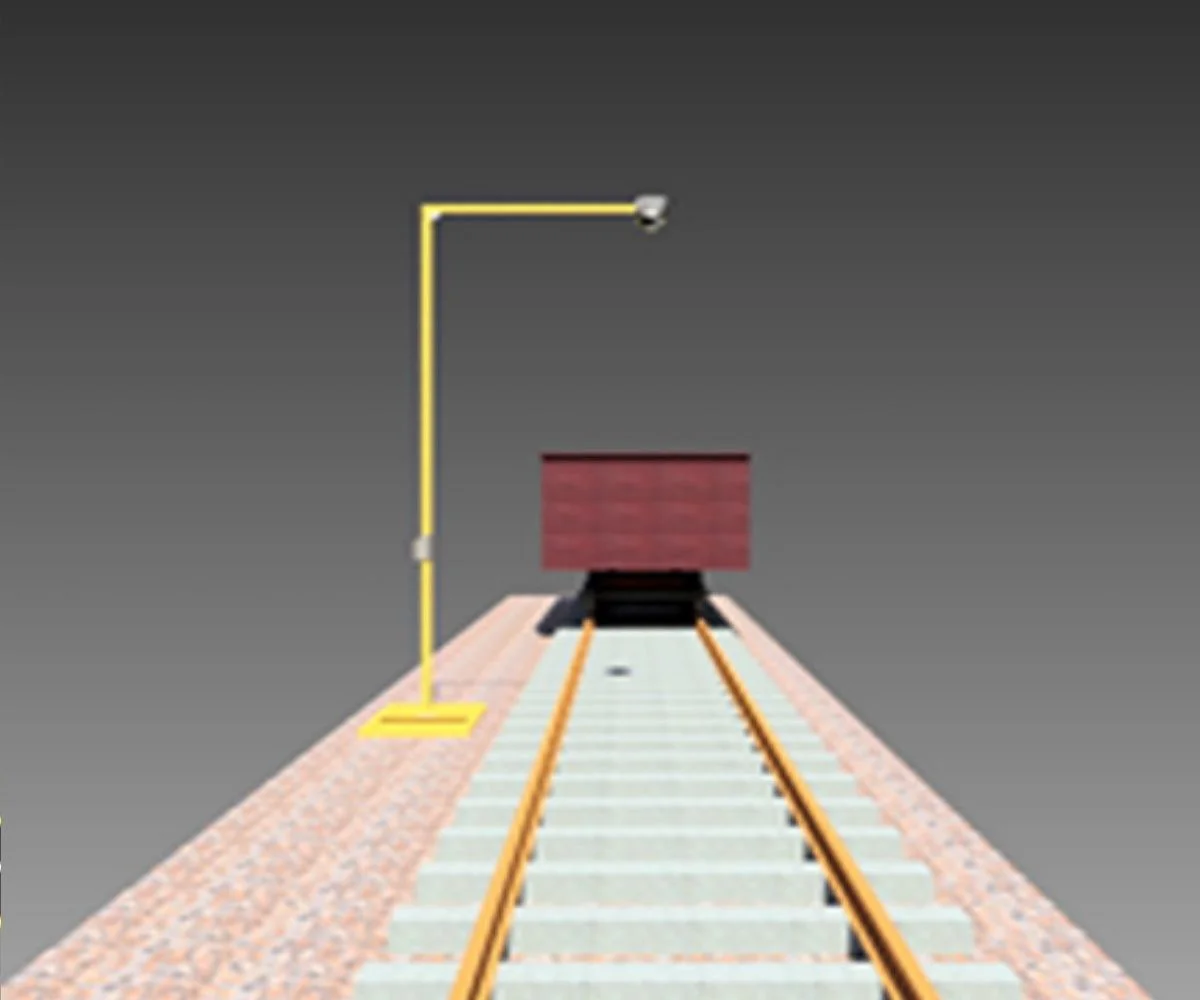

The scanner housing is mounted in a tall pole aside the vehicle path, allowing the trucks to pass beneath the scanner housing slowly at constant speed without stopping the vehicle. As the scanner operates dynamically.

First, the sensor scans the profile of the Empty vehicle in movement. Secondly, sensor scans the Loaded Vehicle Profile and compares that with the scanned profile of the empty vehicle. The difference between the two profiles is considered as the actual load carried by the vehicle.

Report Options
There are numerous custom made report options available like, Hourly reports, Material based reports, Truck wise reports etc. And also detailed individual load ticket with scan image and analysis is available.

More over on demand we can provide the load analysis of individual truck which helps to reduce the haulage maintenance cost, improve fill factor & reduce carry back.

Export Parameters
●Vehicle / wagon ID
●Vehicle Speed
●Operater ID
●Cycle time with time stamp
●Empty scan volume
●Empty Scan Image
●Loaded scan volume
●Loaded scan Image
●Net volume of Load
●Target Load volume
●Material type
●Fill factor%
