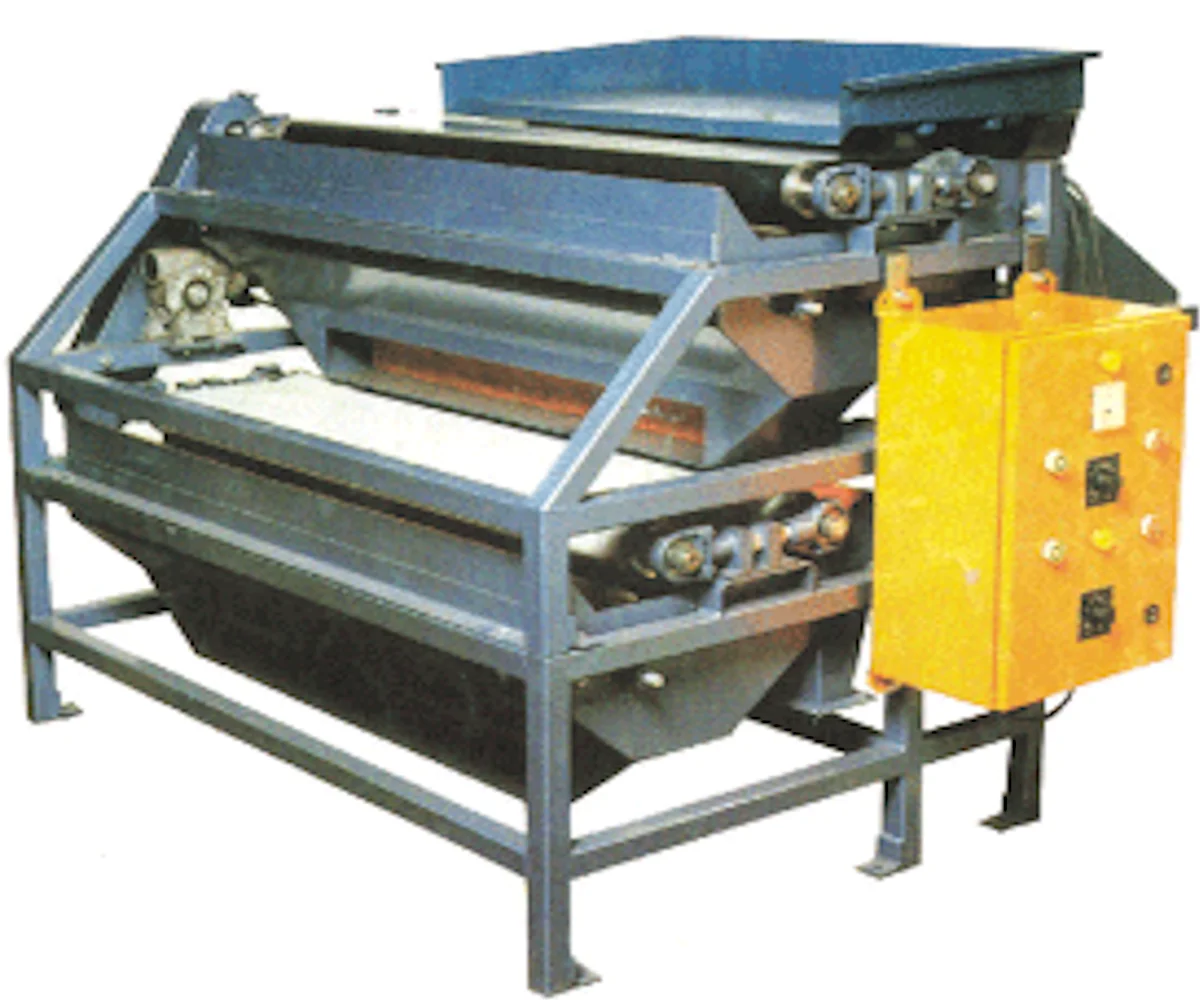

High Intensity Double Roll Type Magnetic Separator

Product Details:

The well-known high-intensity double-roll-type magnetic separator manufacturers and suppliers in India. The high-intensity double-roll-type magnetic separator is used for cleaning and processing different types of grains like corn, pulses, fennel seed, wheat, rice, etc. and it is also used in mineral industries like silica, quartzite, aluminium, etc.

Design:

The high-intensity double-roll-type magnetic separator is equipped with a fully mild steel structure that has good strength and fully closes the body to avoid dusting. A 0.5 HP, variable speed ac/dc geared motor drive adjustable from 0 to 280 rpm drives the roll. Vibratory feeders provided with high-quality unbalanced vibratory motors and different magnetic strengths are available with 8000 gauss power and 10000 to 11000 gauss power.

Size of magnetic rolls available: 75 mm, 100 mm, 150 mm, 200 mm, and 240 mm in diameter and widths up to 2000 mm.
